REMOVAL
1.
Disconnect the battery.
2.
Locate the diode in the harness, and remove the protective covering.
3.

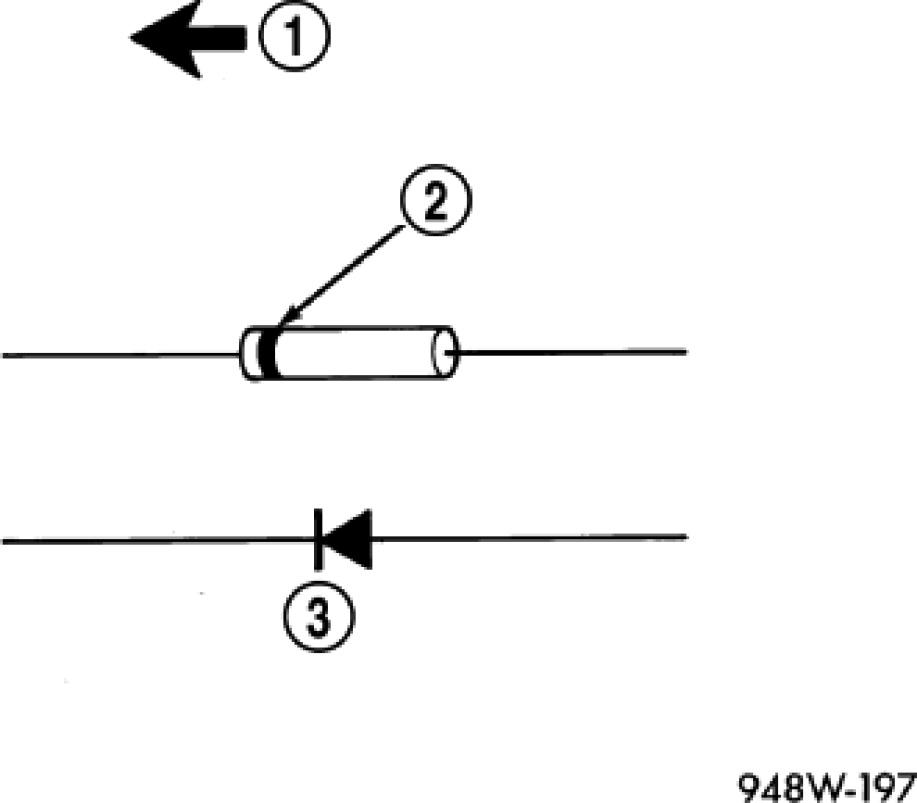

Remove the diode from the harness, pay attention to the current flow direction (1) (2) (3).
