Rear

REAR

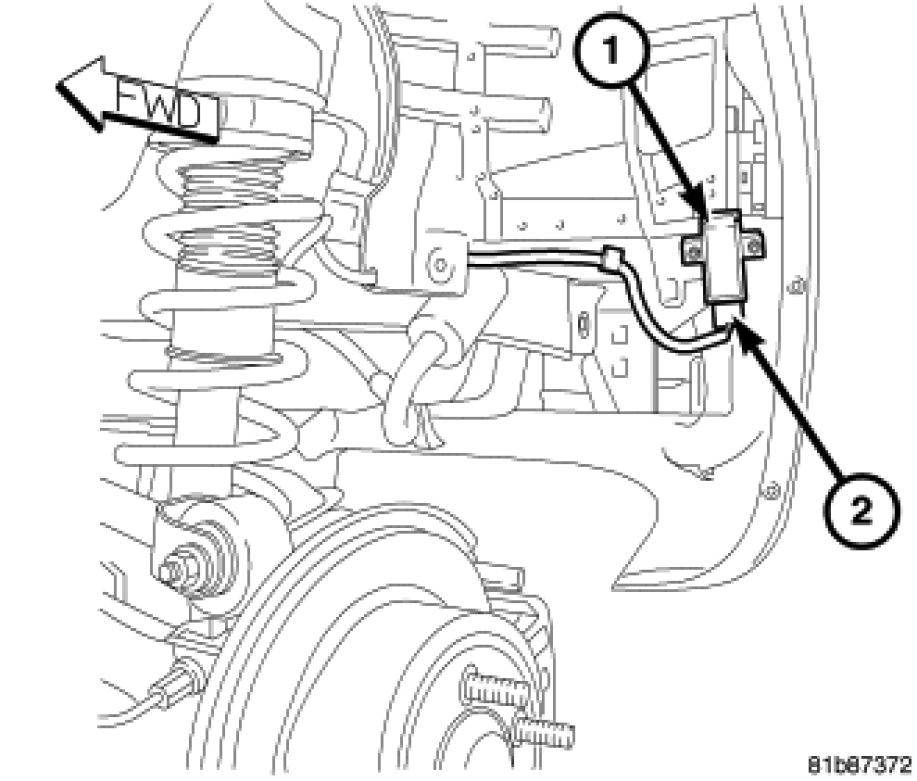

1. Position the transponder (1) and install the mounting nuts.
2. Connect the wiring harness connector (2) to the transponder.
3. Install the wheelhouse splash shield and all components removed to access it. Rear Wheelhouse Splash Shield - Installation
4. Perform the TPM Diagnostic Verification Test. Tire Pressure Monitor (TPM) Verification Test
