Connector Views

Component ID: 423

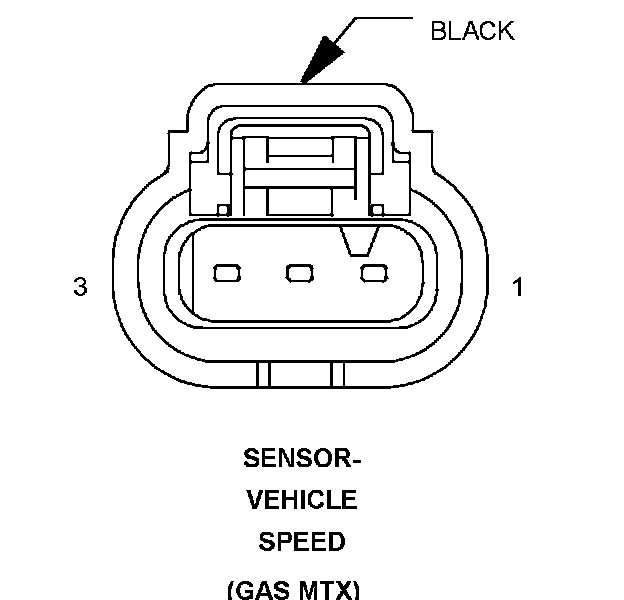

Component : SENSOR-VEHICLE SPEED

Connector:
Name : SENSOR-VEHICLE SPEED
Color : BLACK
# of pins : 3
Qualifier : (GAS MTX)




Pin Circuit Description
1 F856 20YL/PK 5 VOLT SUPPLY
2 K914 20BR/WT SENSOR GROUND
3 K75 20DB/OR VEHICLE SPEED SIGNAL

Component Location - 13
