Installation







3.5L

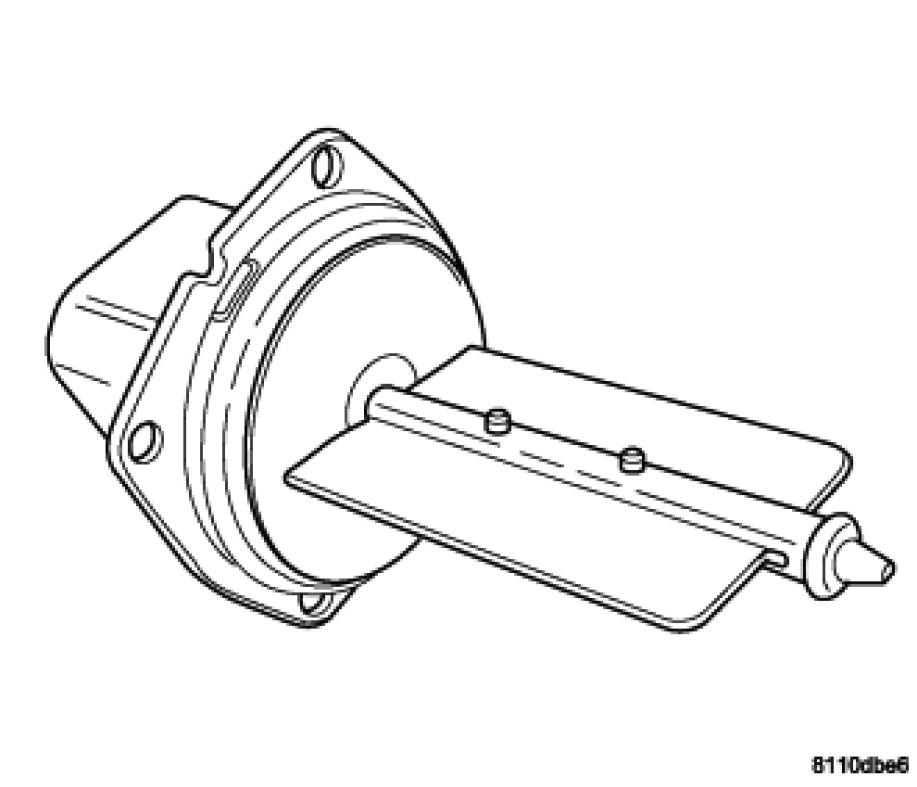

NOTE: Inspect the O-ring and gasket for the manifold tune valve replace if damaged.

1. Install a new O-ring and gasket to the manifold tune valve, if necessary.

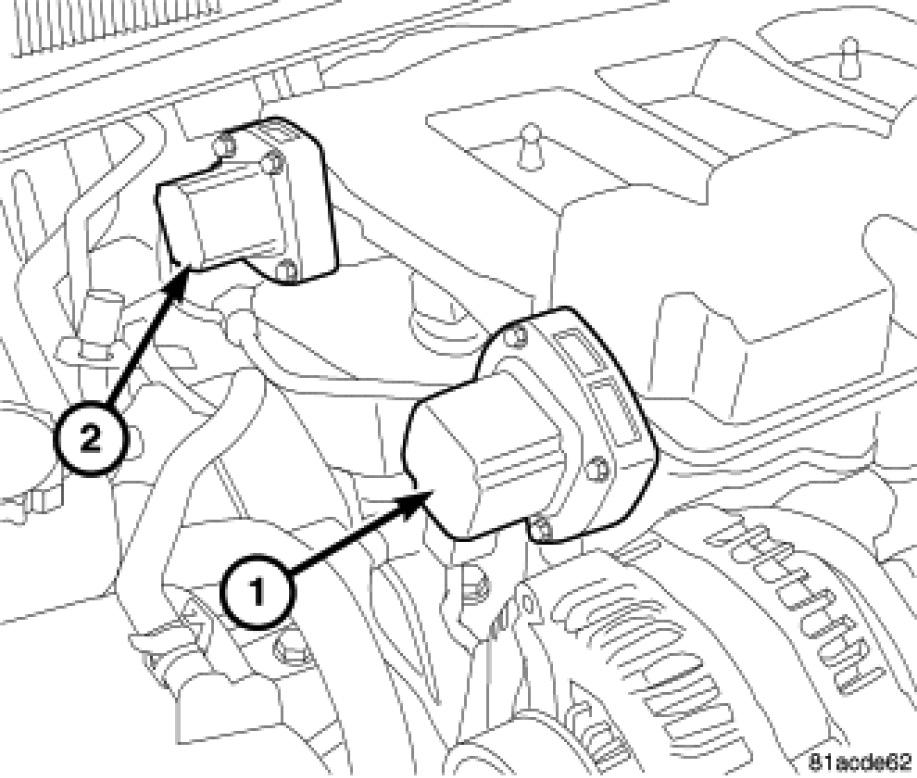

2. Install the manifold tuning valve.
3. Make sure that the alignment pin and notch line up.




4. Install bolts and tighten.
5. Connect the electrical connector.
6. Install the engine cover.
7. Connect negative battery cable and tighten to 16.5 Nm (145 in. lbs.).
