Installation

INSTALLATION

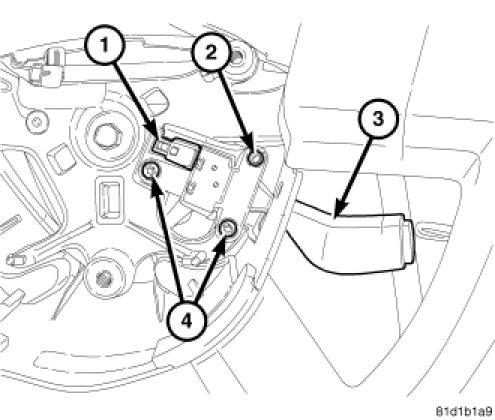

1. Install speed control switch (3) onto the locating pin (2) in the steering wheel. Make sure rubber seal is in place around switch.
2. Install speed control switch mounting screws (4) and tighten screws to 1.6 Nm (15 ins. lbs.).
3. Connect electrical connector (1) to speed control switch (3).




4. Install horn switch (2) to steering wheel.
5. Install horn switch mounting screws (3) and tighten screws to 8 Nm (71 ins. lbs.).




6. Install driver's side airbag, Driver Airbag - Installation.
7. Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
8. Verify vehicle and system operation.
