Fuel Fill Door - Installation

INSTALLATION

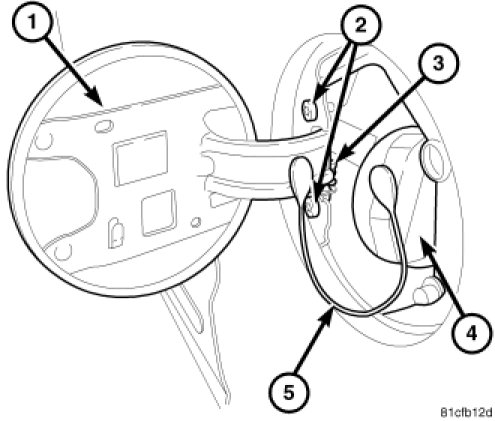

1. Install the fuel fill door (1) to the vehicle.
2. Engage clip to hold link (3) to fuel fill door (1).
3. Install the fasteners (2) to the body.
4. Install the gas cap holding cable (5) to the fuel fill door (1).
5. Install the gas cap (4).
6. Verify fuel fill blocker latch operation.
