Installation

INSTALLATION

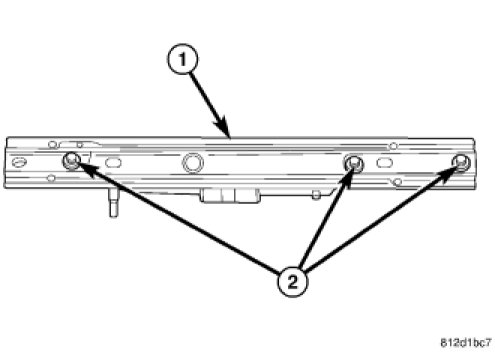

1. Install the seat tracks (1) to the riser as required and install the retaining nuts (2). Tighten the nuts to 45 Nm (33 ft. lbs.).

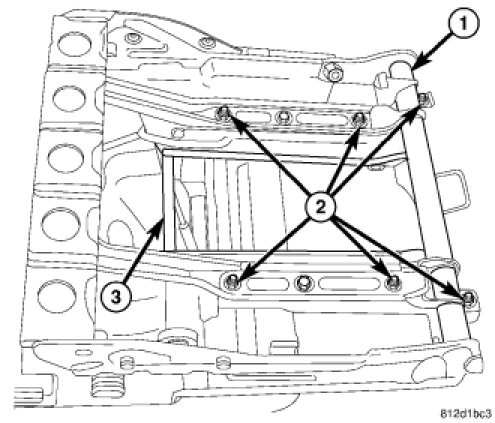

2. Position the seat cushion frame (1) onto the seat riser (3) and install the six retaining nuts (2). Tighten the nuts to 30 Nm (22 ft. lbs.).

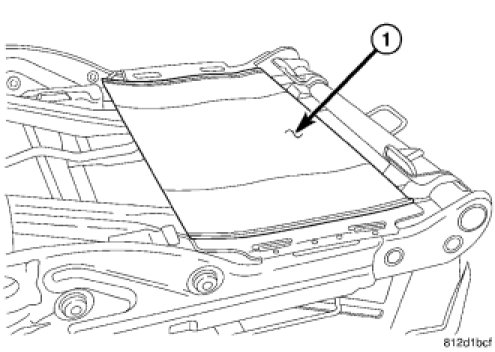

3. Install the elastic cushion support (1) onto the seat cushion frame.
4. Install the seat foam and cushion coverSeat Cushion / Cover - Installation.
5. Install the seat back frameSeat Back Frame - Installation.
6. Install the seatSeat - Installation.
