Removal

REMOVAL





1. Place the second row seat being serviced in the upright position and disengaged from the rear strikers.

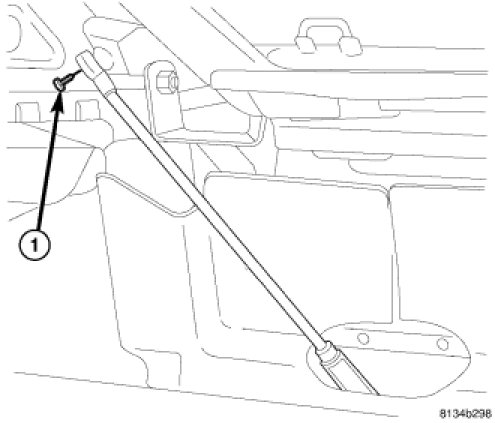

2. Remove the bolt (1) that secures the top of the prop rod to the seat cushion frame.

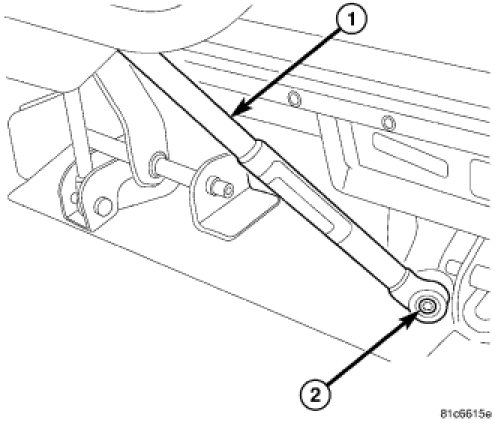

3. Remove the bolt (2) that secures the bottom of the prop rod (1) to the seat frame and remove the rod.
