Canada - Recall - K14 Power Sliding Door
BulletinK14
Issue Date
2010-11-27
IMPORTANT
DEALER SERVICE INSTRUCTIONS

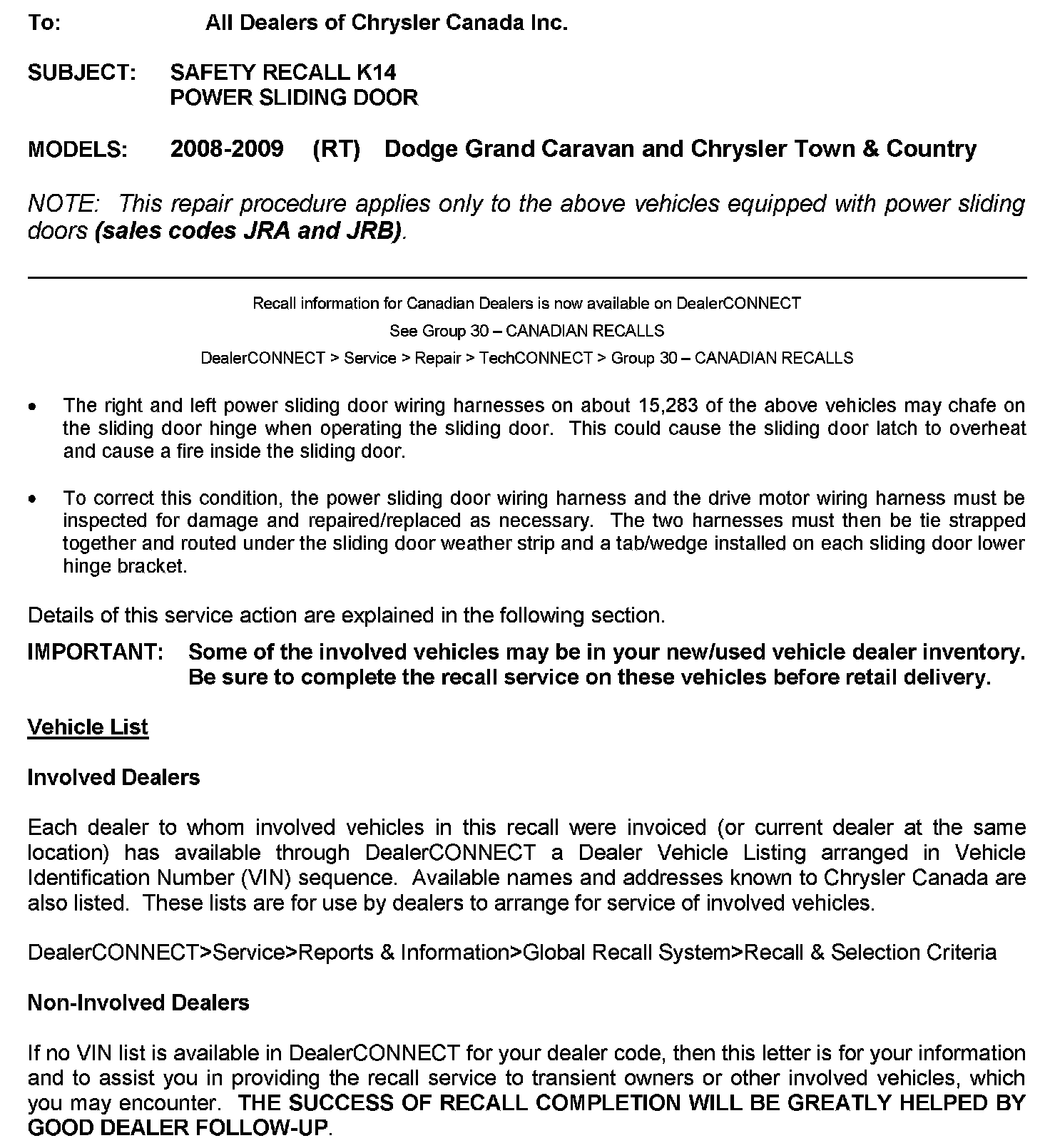

SAFETY RECALL K14 POWER SLIDING DOOR
NOTE:
This repair procedure applies only to the above vehicles equipped with power sliding doors (sales codes JRA and JRB).
^ The right and left power sliding door wiring harnesses on about 15,283 of the above vehicles may chafe on the sliding door hinge when operating the sliding door. This could cause the sliding door latch to overheat and cause a fire inside the sliding door.

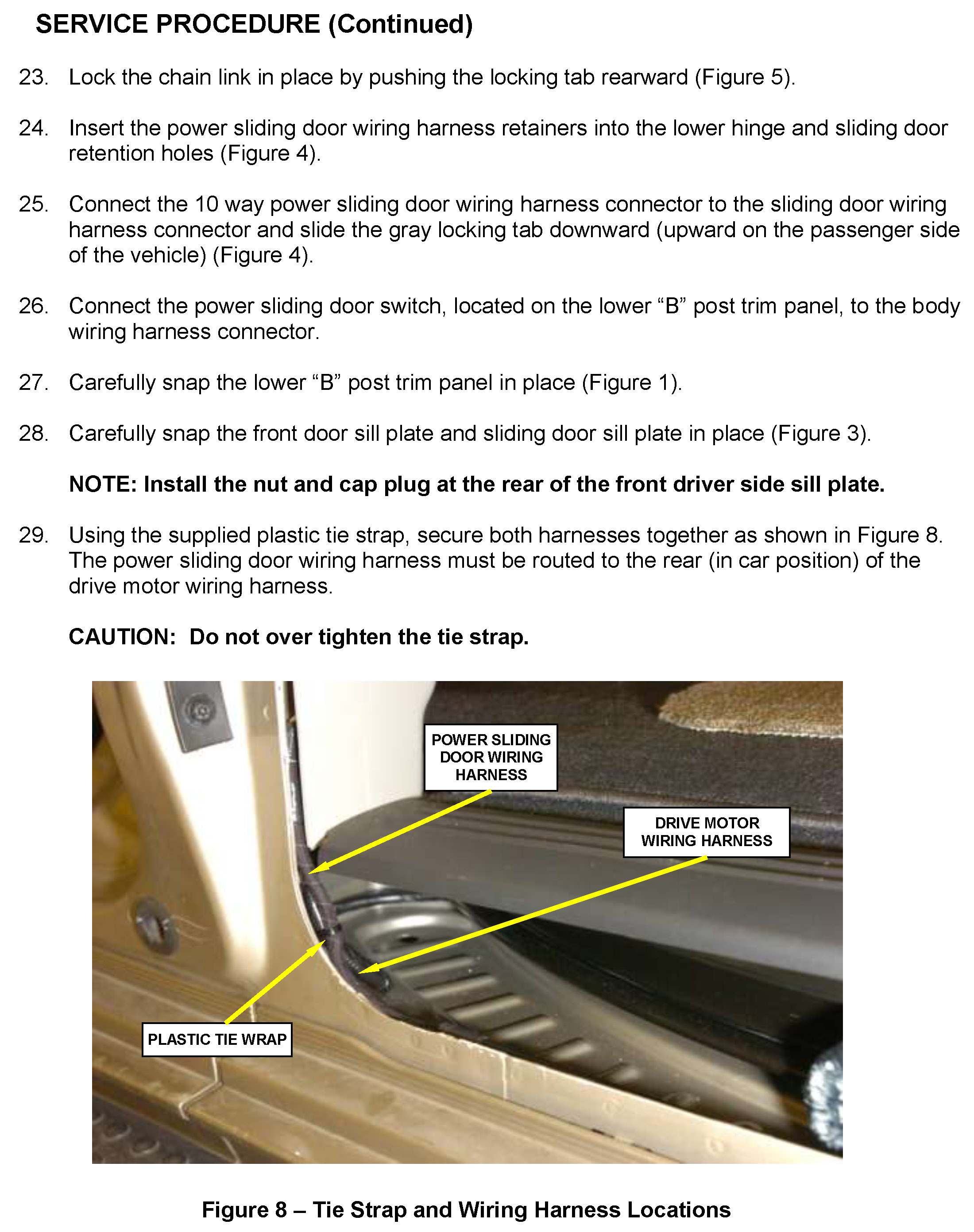

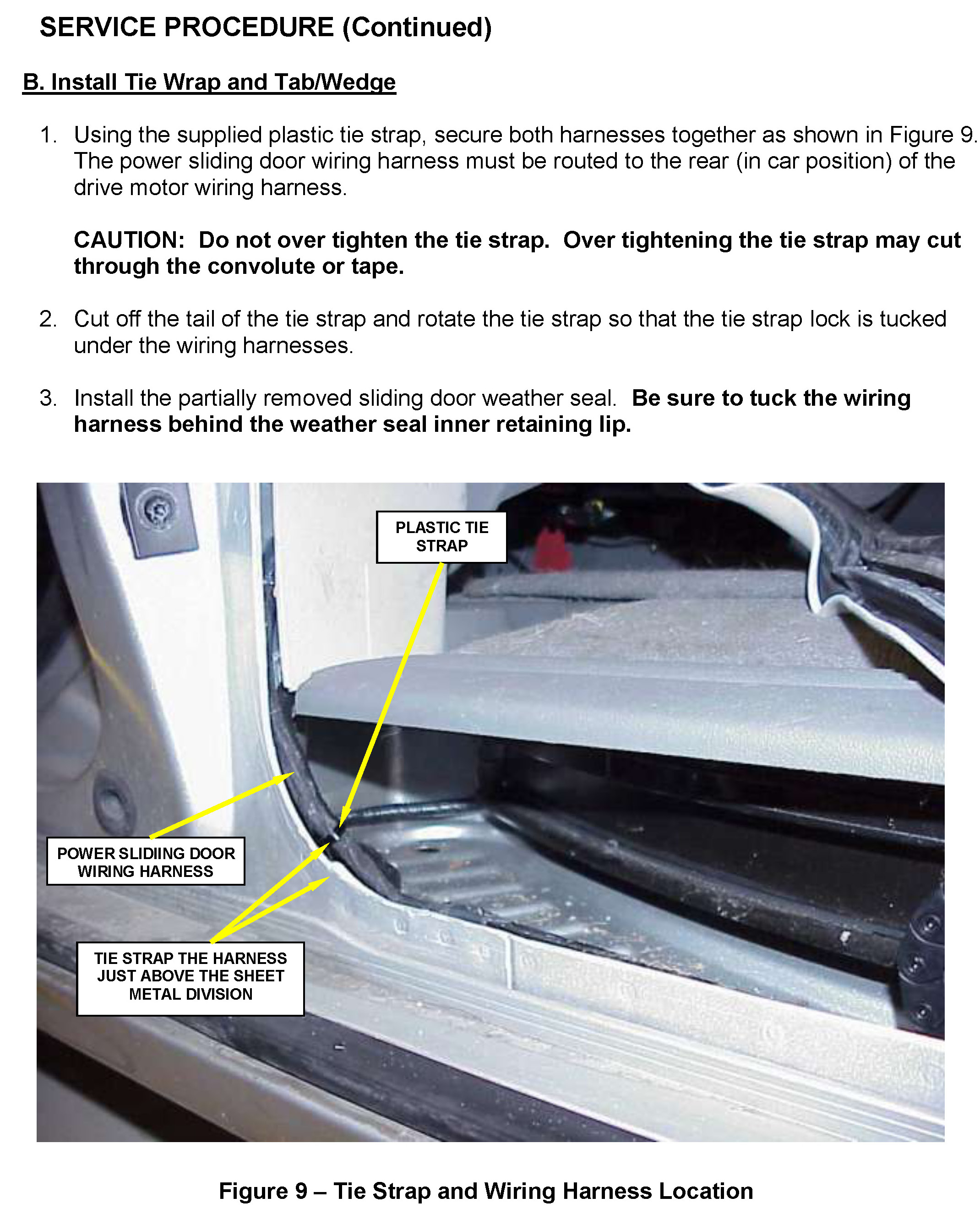

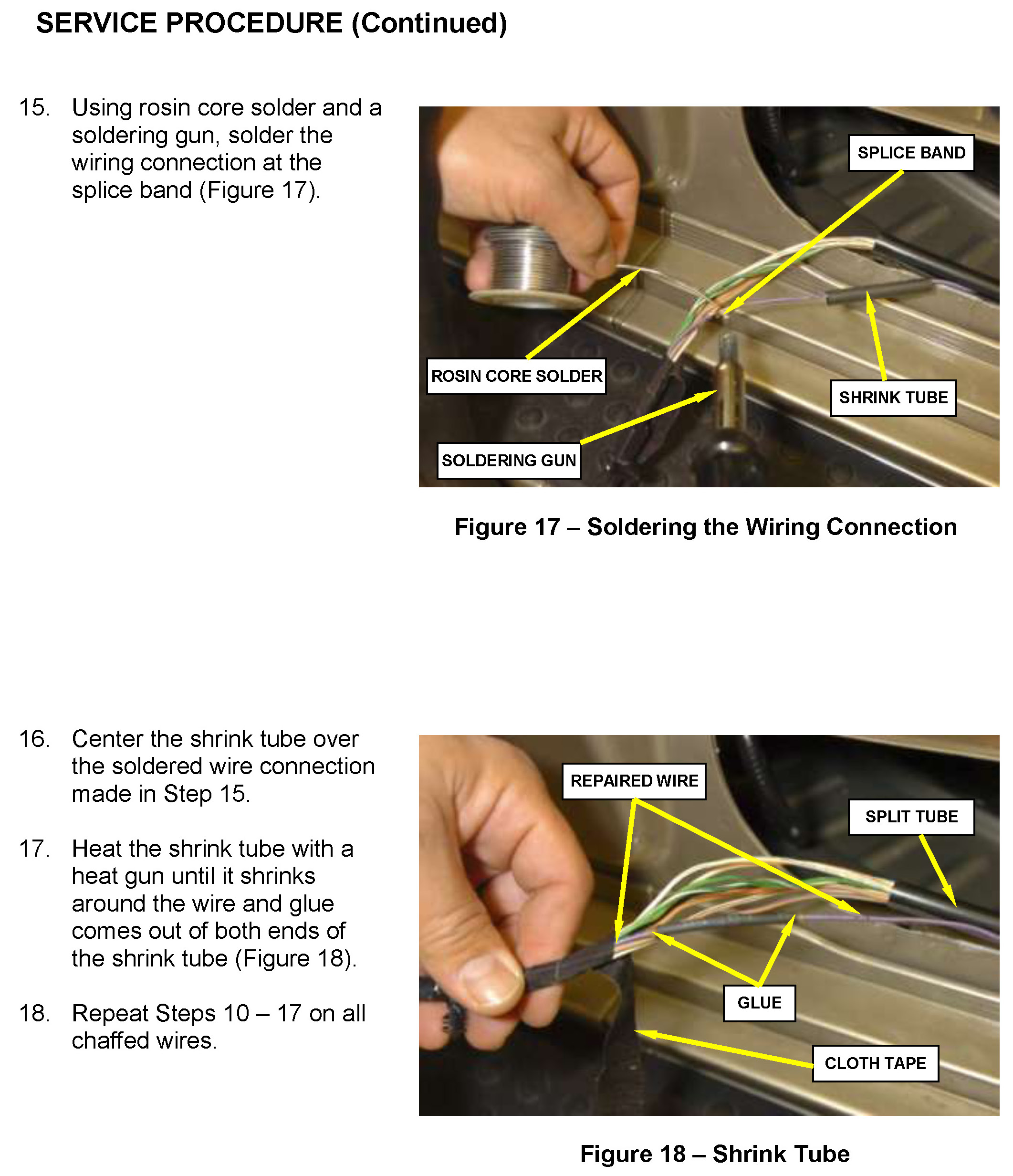

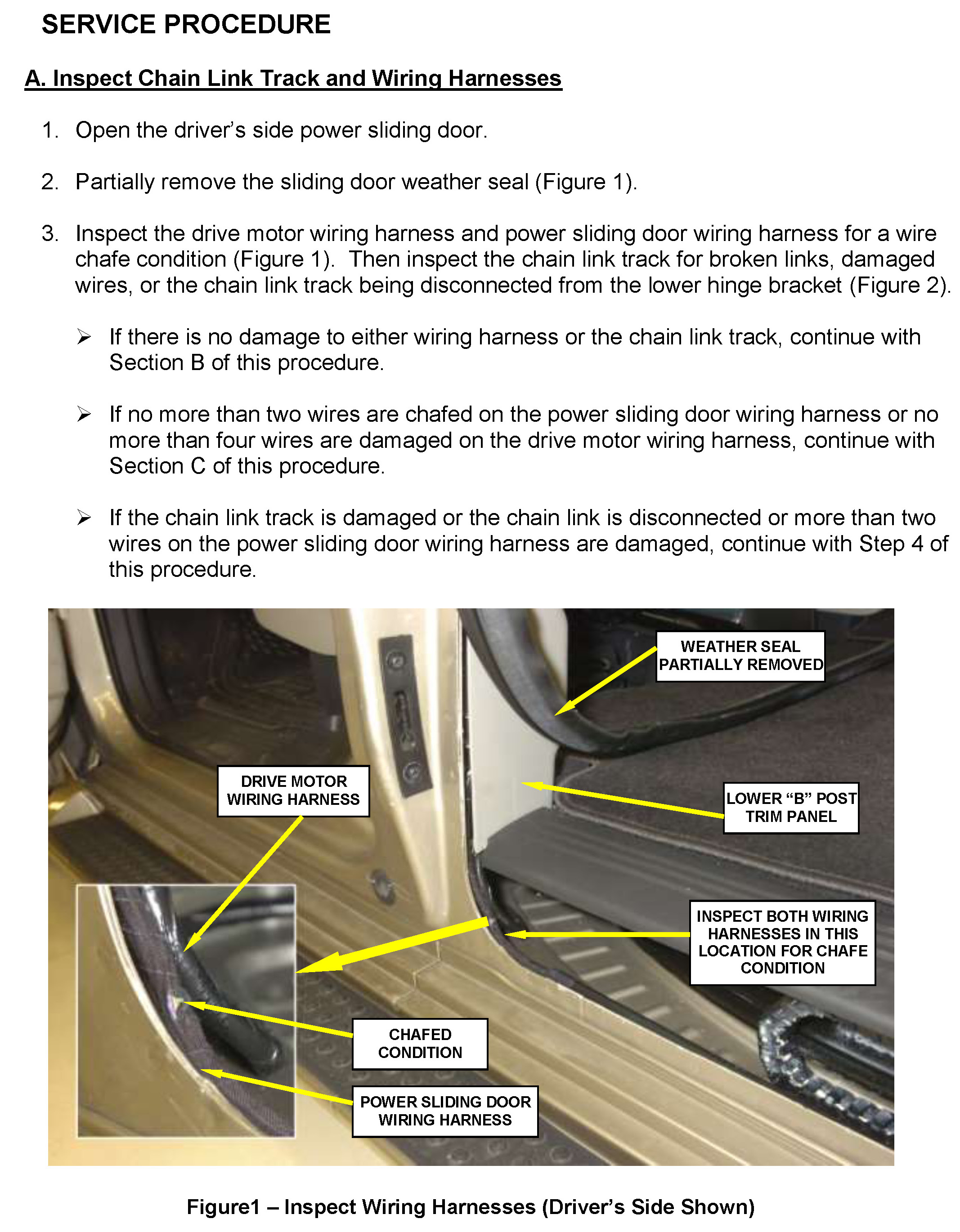

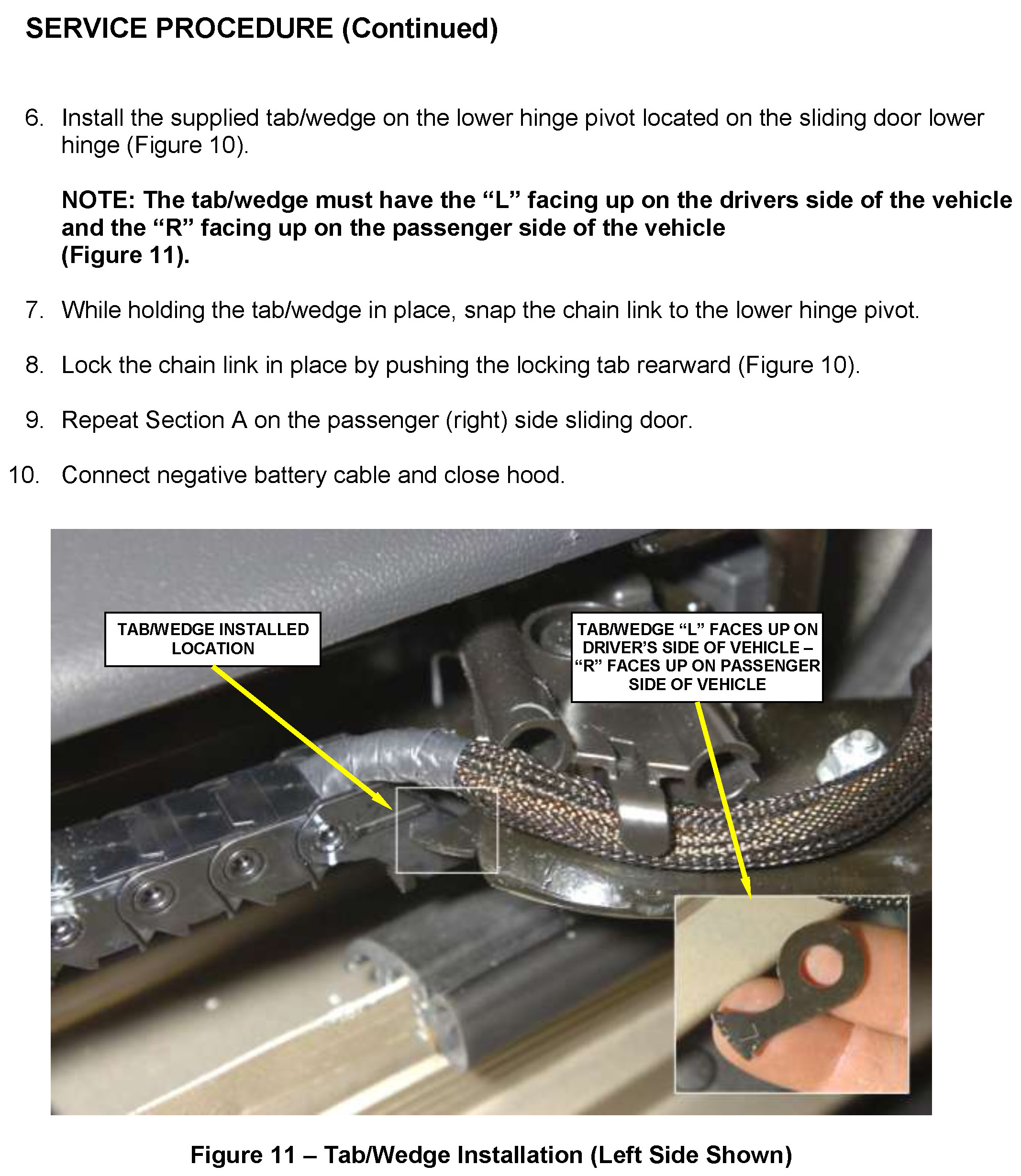

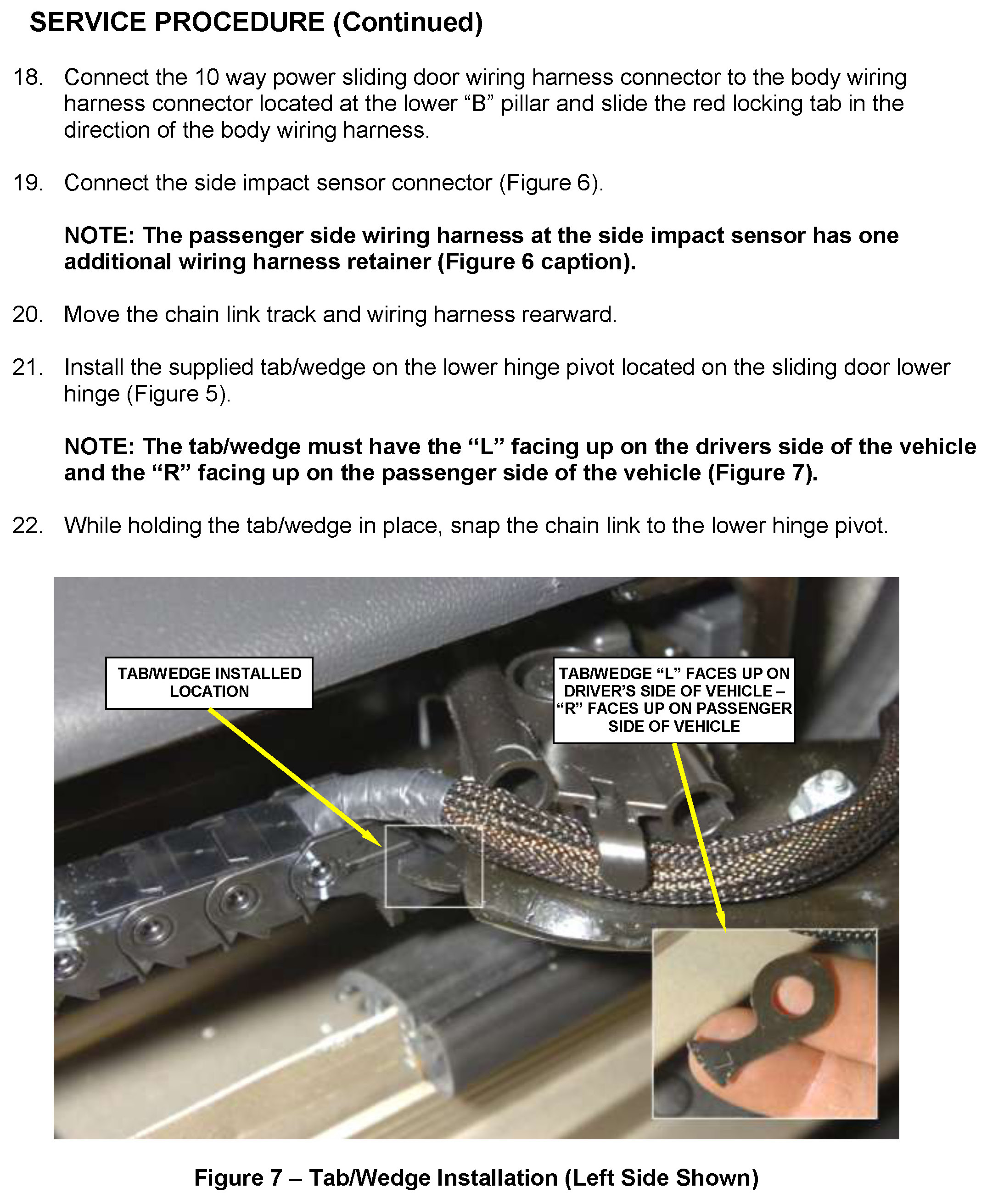

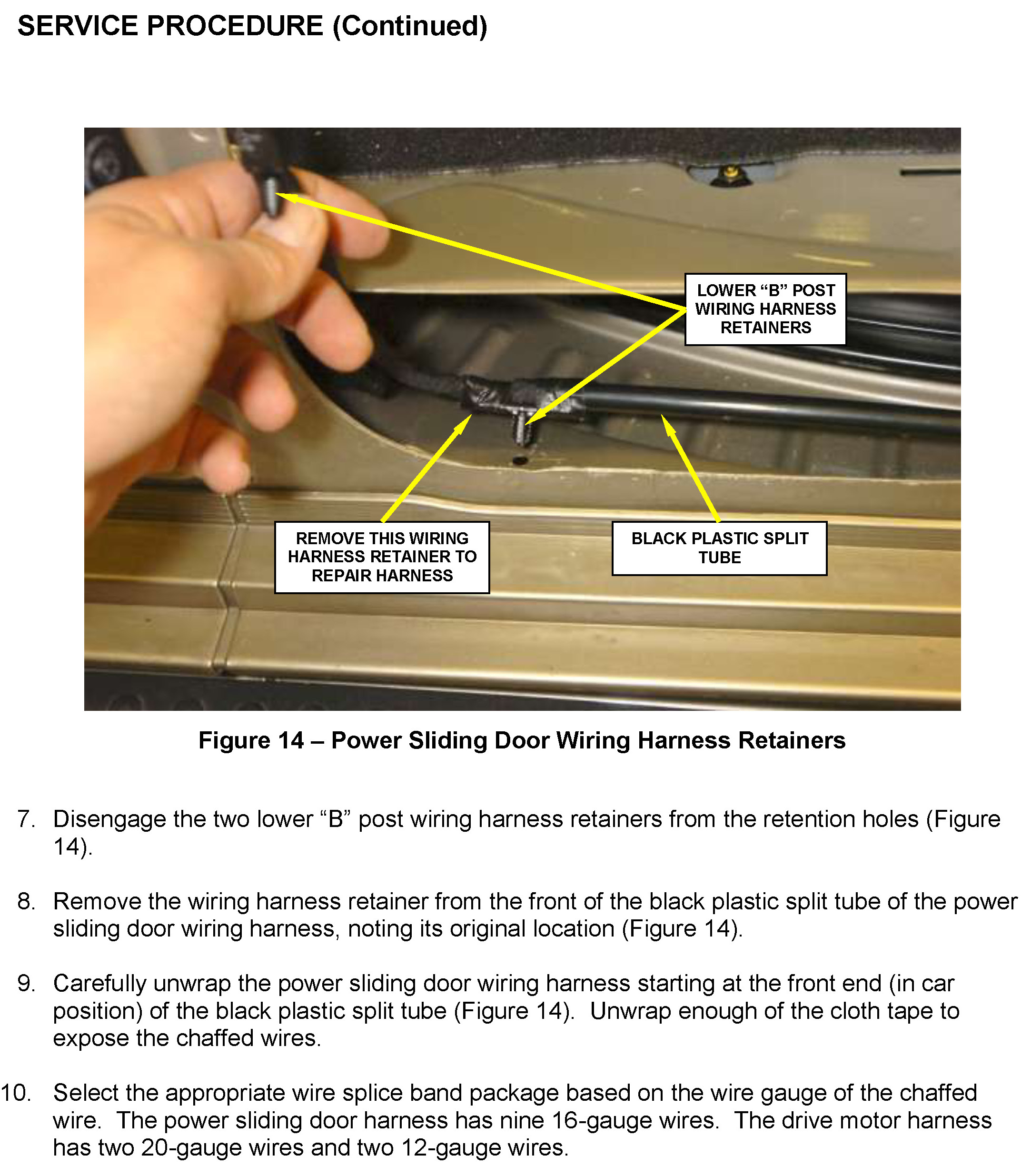

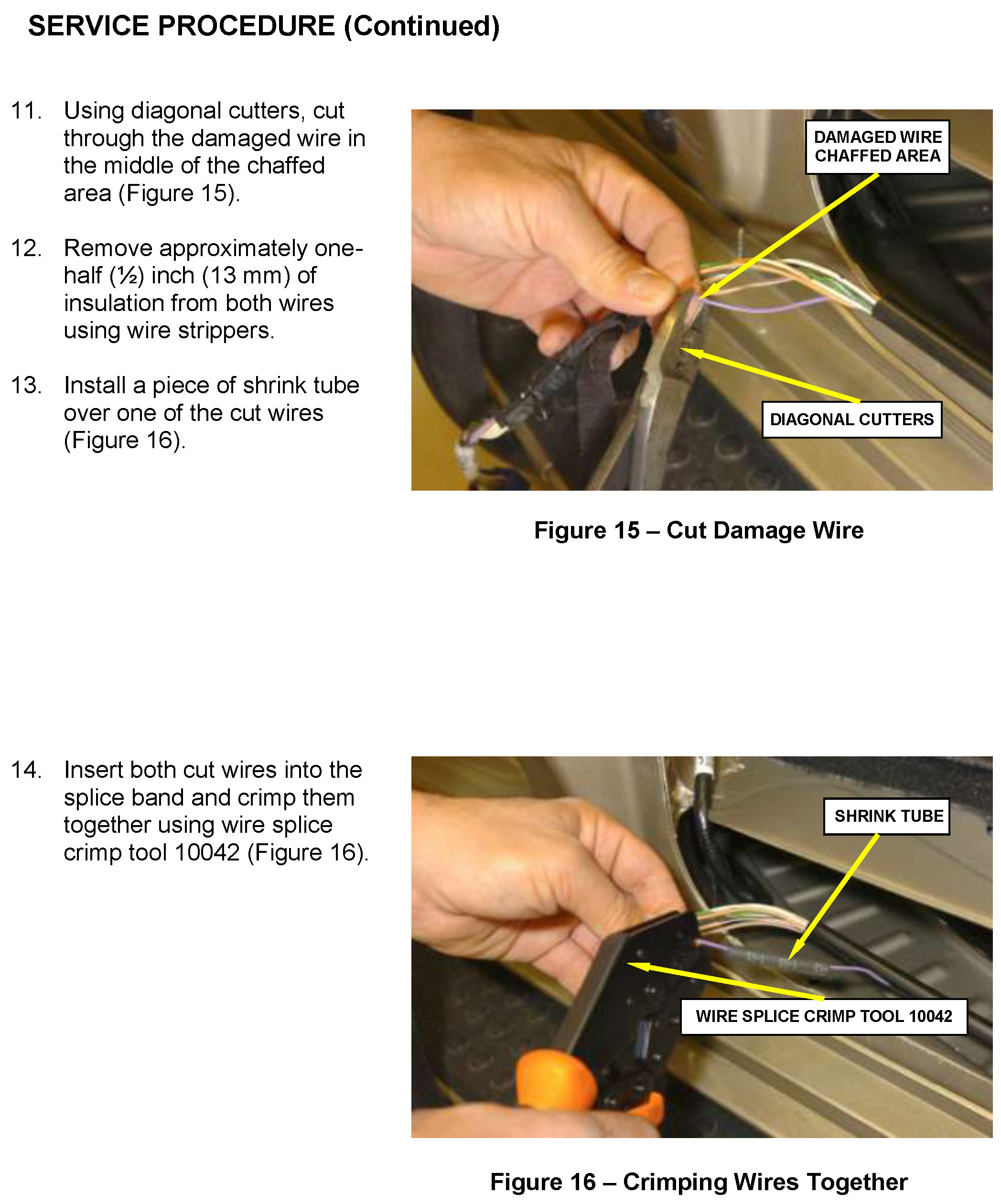

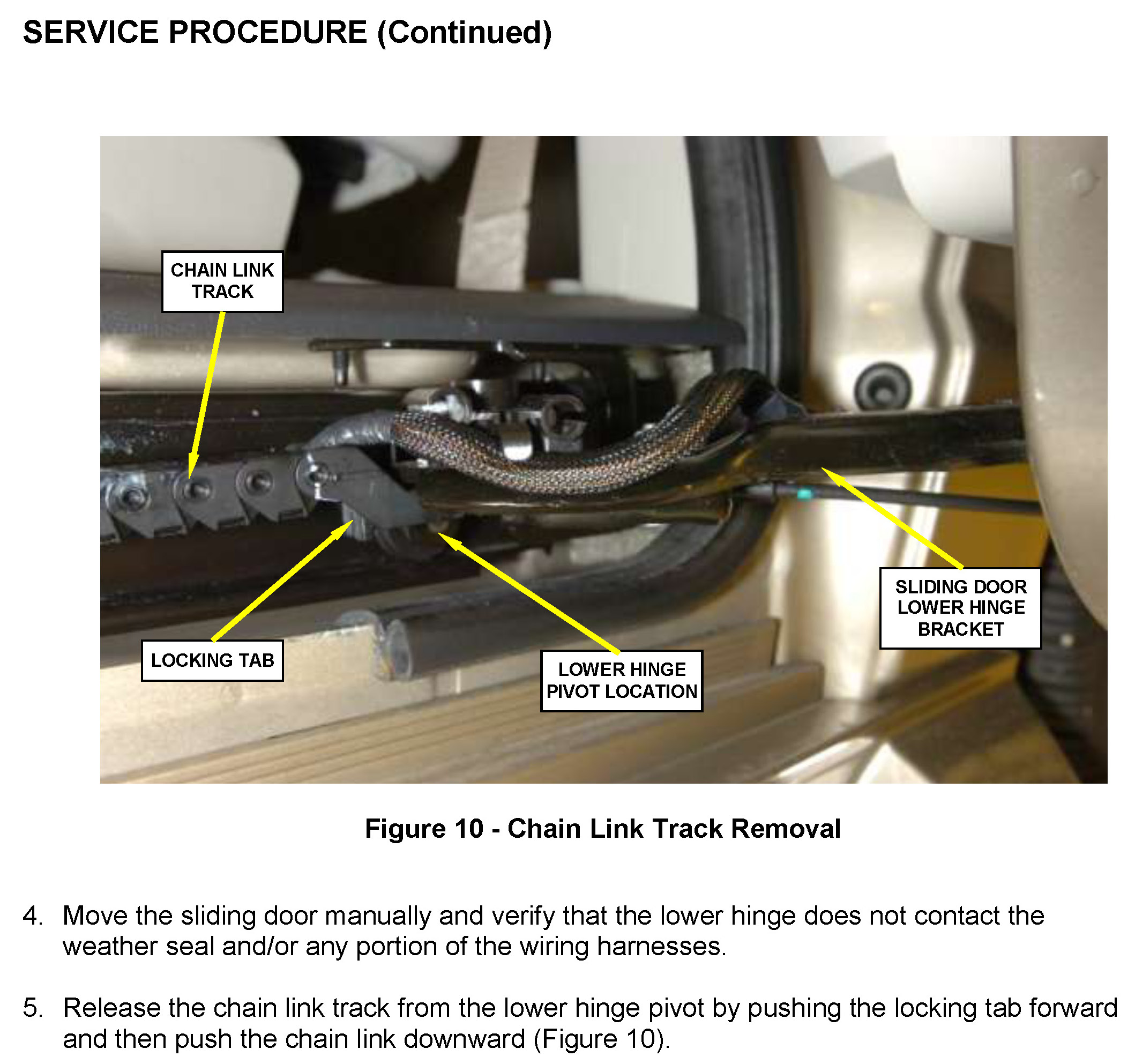

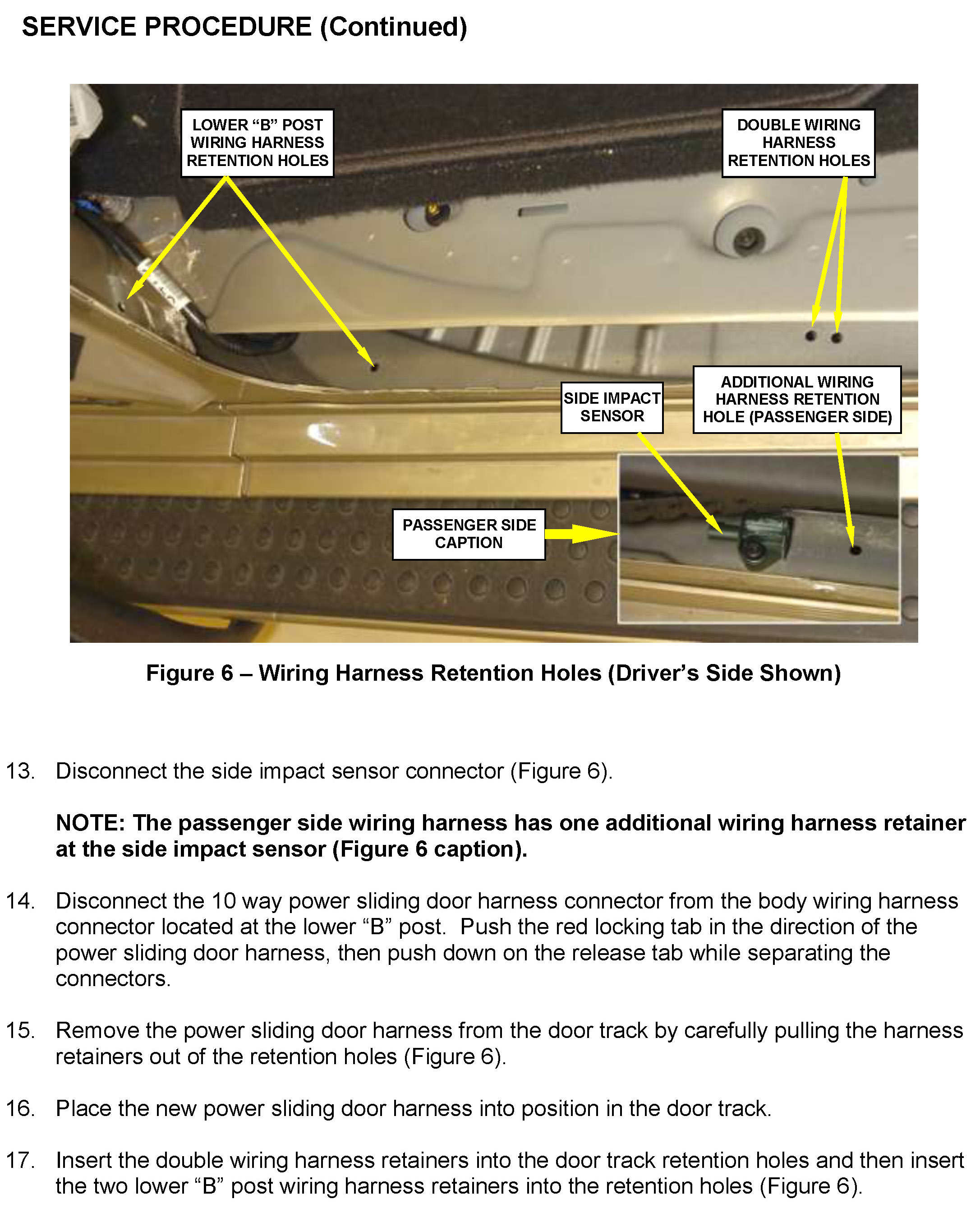

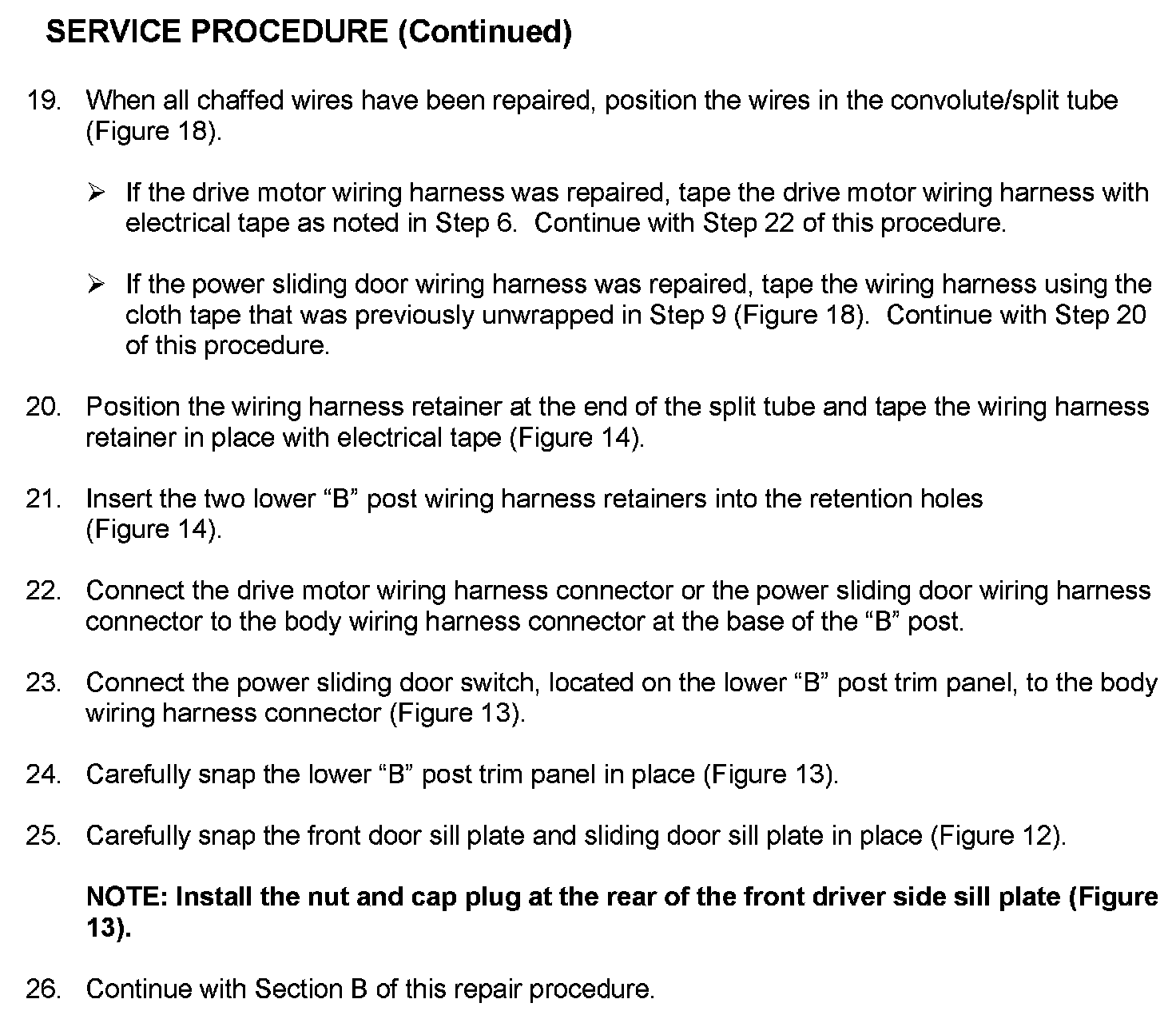

^ To correct this condition, the power sliding door wiring harness and the drive motor wiring harness must be inspected for damage and repaired/replaced as necessary. The two harnesses must then be tie strapped together and routed under the sliding door weather strip and a tab/wedge installed on each sliding door lower hinge bracket.

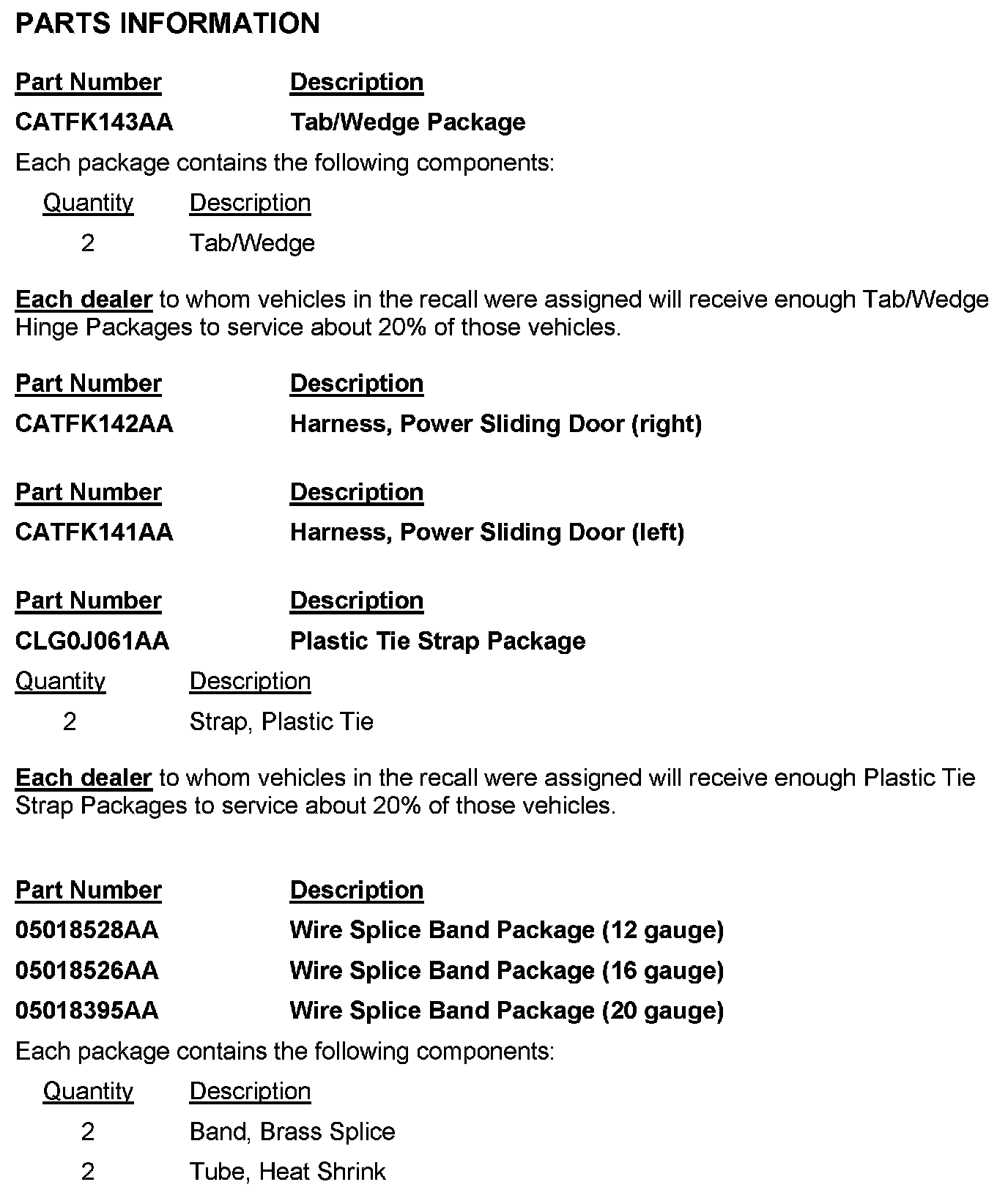

Recall and Parts Information
Canadian Recall Service Instructions and Part Numbers can be different. Always use the attached Canadian Recall Notification for service instructions and parts information.
This Canadian Recall Notification can also be found in DealerCONNECT - See below:
DealerCONNECT > Service > In the Repair section TechCONNECT > 30 - CANADIAN RECALLS
The V.I.N. range for vehicles involved in this campaign is as follows:
1D8HN44P48B102289 - 1D8HN54P58B189528
2A8HR64X08R100113 - 2D8HN54P18R845161
2D8HN44E39R502460 - 2D8HN44E19R703998

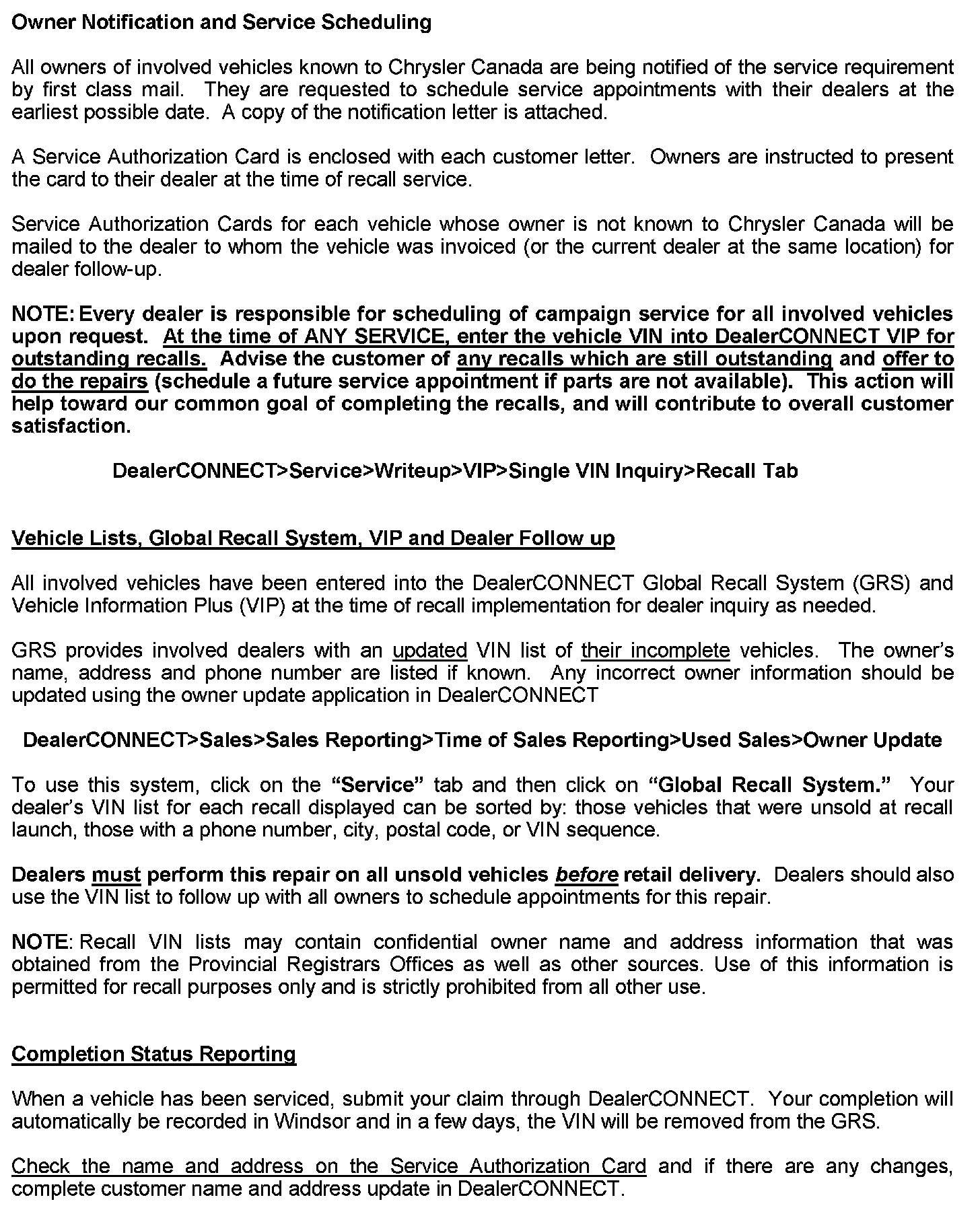

DEALER VIN LISTS Located in DealerCONNECT - Global Recall System (GRS)
GRS has been developed to provide dealers with an up-to-date list of involved vehicles by recall number and by dealer code. Owners known to Chrysler are also listed. Involved vehicles will be removed from the GRS within several days of submitting repair claims.
To use the GRS in DealerCONNECT, you first need to click on the Service tab and then in the Repair section click on Global Recall System. Your dealer's VIN list for each Recall can be sorted by: Unsold Vehicles (at the time of Recall launch), Phone Number, City Name, Zip Code (Postal Code) or VIN.
Dealer Information

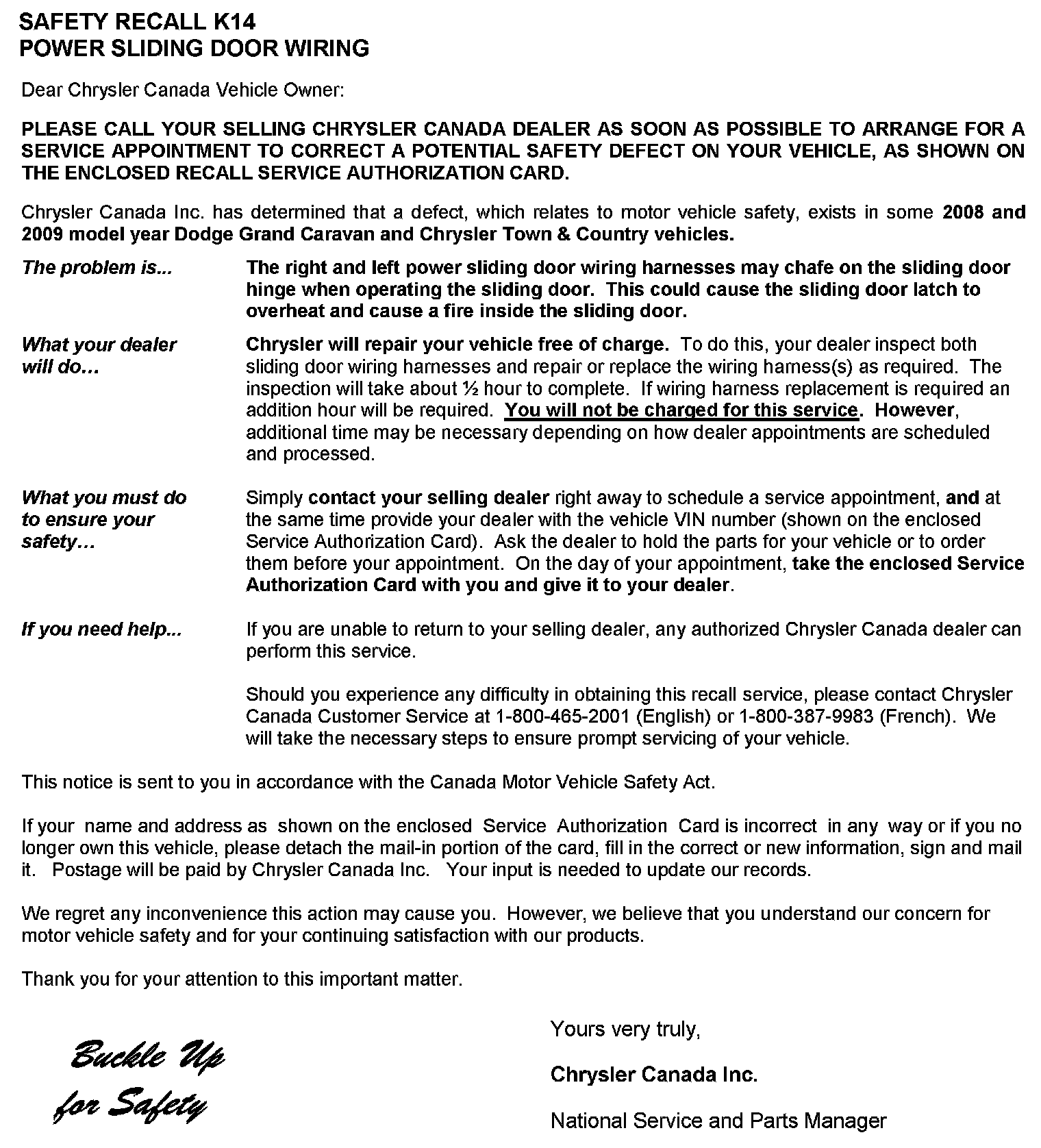

Owner Letter
