Removal

DODGE





1. Disconnect and isolate the battery negative cable.

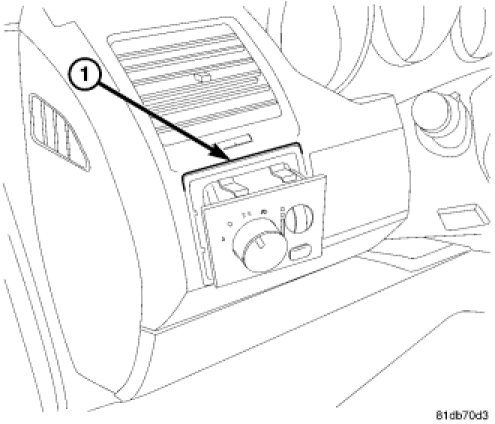

2. Using a trim stick or equivalent, insert on the outboard edge (1) and pry to remove trim plate from the dashboard.




3. Disconnect the electrical connector (1).
4. Squeeze retaining tabs on the switch and remove switch from trim plate.
CHRYSLER






1. Disconnect and isolate the battery negative cable.

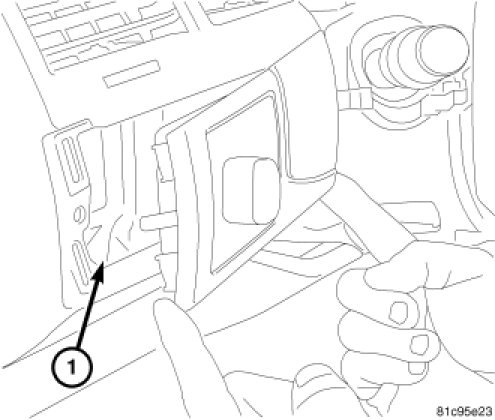

2. Using a trim stick or equivalent, insert on the outboard edge (1) and pry to remove switch from the dash bezel.




3. Disconnect the electrical connector (1) from the switch and remove switch from vehicle
