Engine Control Module - Removal

REMOVAL

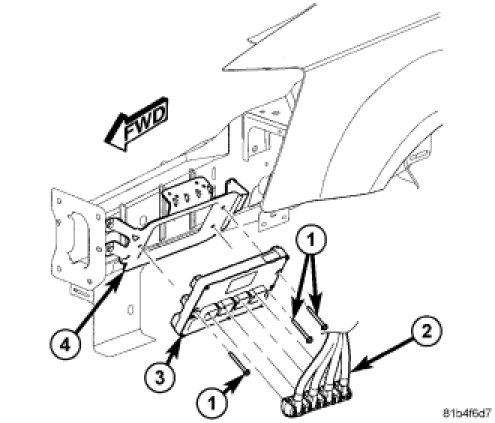

NOTE: The Engine Control Module (ECM) is located on the left side of the engine compartment.

1. Disconnect and isolate negative battery cable.
2. Disconnect the harness connector (2) from the ECM (3).
3. Remove the two bolts (1) and remove the ECM (3) from the bracket (4).
