Second Row Bucket Seat - Except Swivel

SECOND ROW BUCKET SEAT - EXCEPT SWIVEL

WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar(R) Parts Catalog.





1. Remove the side shield and the hinge cover from the inboard side of the seat.

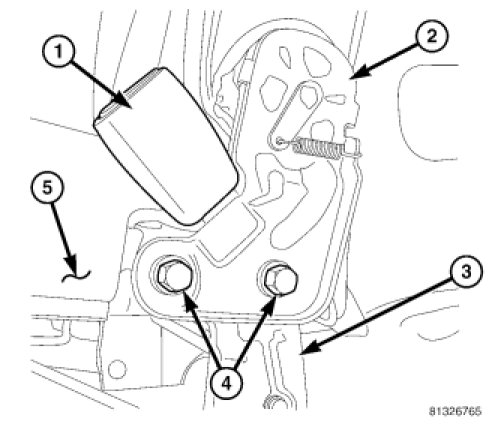

2. Remove the screws (4) that secure the inboard seat back hinge to the seat cushion




3. Carefully pull the base of the hinge (1) away from the inboard side of the seat cushion frame (3) far enough to disengage the seat belt buckle lower anchor (2) that is captured between the frame and the hinge.
4. Remove the buckle from the seat.
