Installation

INSTALLATION

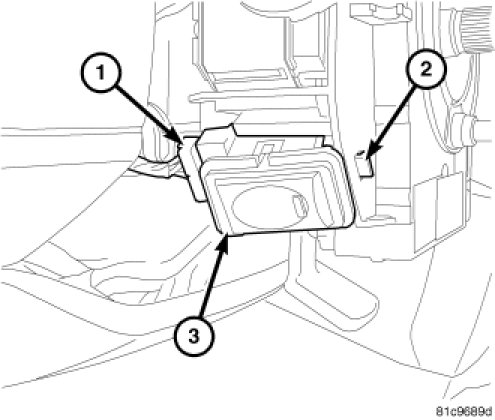

1. Slide the adjustable pedals switch (3) into the mounting slot in the SCCM on the steering column from the front of the vehicle. Insert the switch until the retaining tab (2) hook engages, locking it in place.
2. Connect the wiring harness connector (1) to the adjustable pedals switch (3).

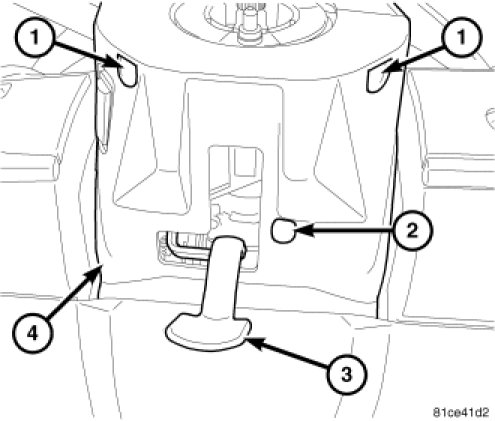

3. Push the tilt lever (3) downward (released position).
4. Position the column tilt at the full-upward position.
5. Install the lower shroud (4) over the tilt lever and onto the column.
6. Install the screw (2) attaching the lower shroud (4) to the steering column.
7. Clip the upper shroud to the lower.
8. Install the two screws (1) attaching the lower shroud to the upper shroud.
9. Push the tilt lever upward, locking the column in place.
10. Connect the negative (-) cable to the battery.
11. Check operation of the adjustable pedals switch.
