Oil Temperature Sensor - Removal

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the accessory drive belt Serpentine Accessory Drive Belt - Removal
3. Remove the generator upper mounting bolt.
4. Raise and support the vehicle.

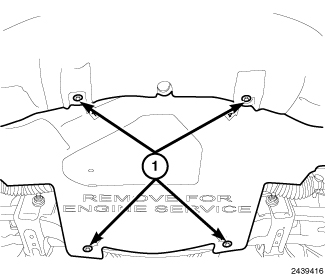

5. Remove the lower splash shield retaining bolts (1) and the splash shield.





6. Remove the generator lower mounting bolts (1).
7. Lower the vehicle.
8. Position the generator aside to gain access to the oil temperature sensor.





9. Disconnect the oil temperature sensor electrical connector (1).





10. Remove the oil temperature sensor (1).
