300 SRT-8 V8-6.1L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
Differential Assembly

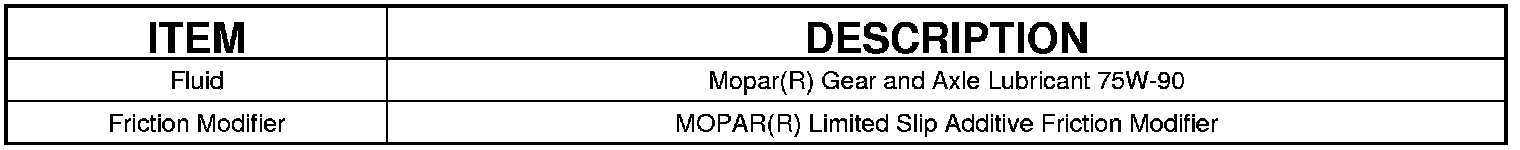

REAR AXLE - G648
AXLE

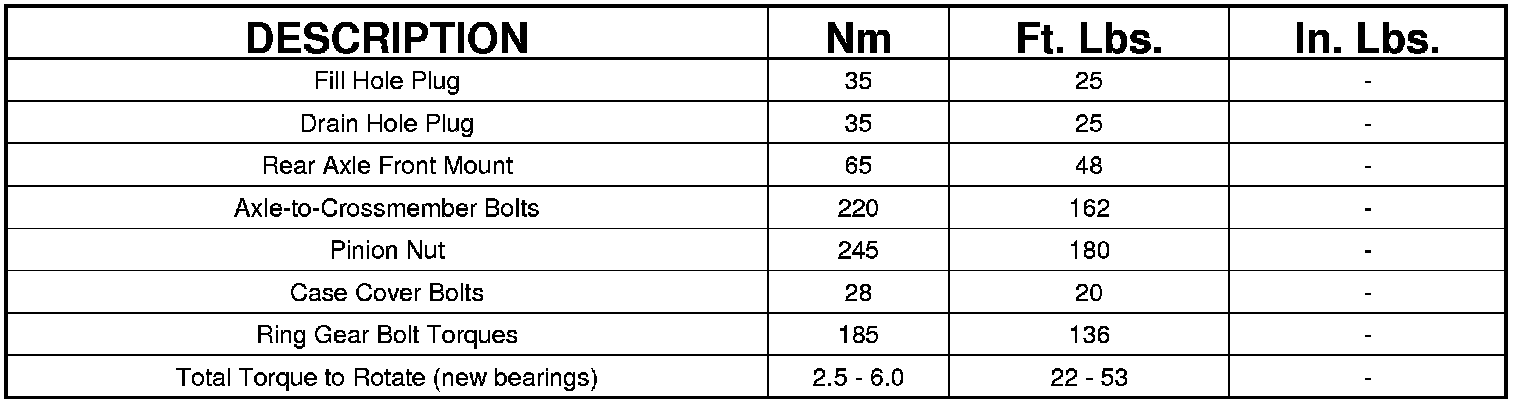

TORQUE
