Satellite Video Module C1 (Headliner) 16 Way

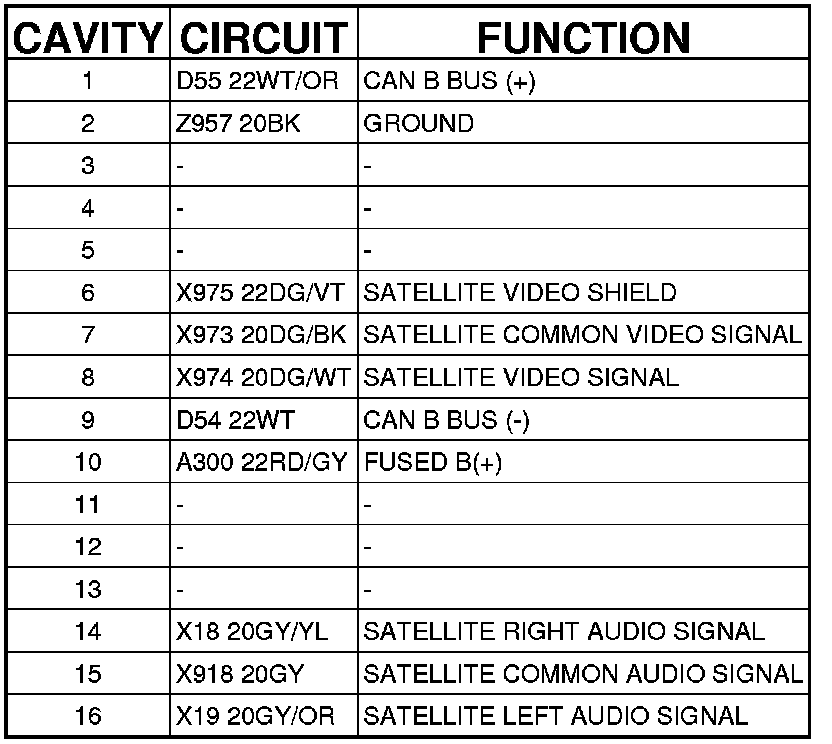

Connector C1 - (HEADLINER) 16 WAY

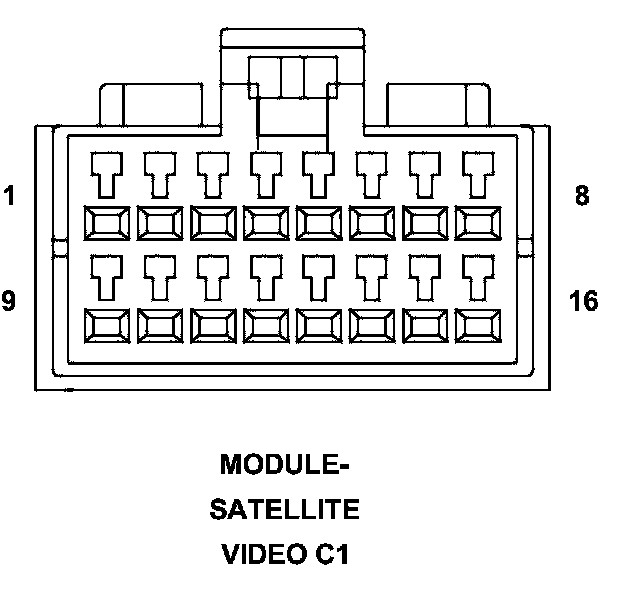

MODULE-SATELLITE VIDEO - (HEADLINER) 16 WAY
