Air Temperature Sensor ( Ambient / Intake ): Diagrams

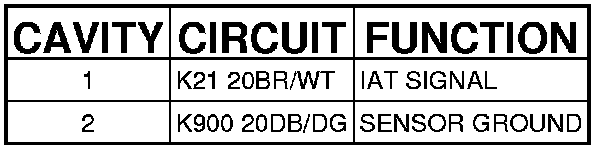

Connector HEV - (ENGINE) 2 WAY

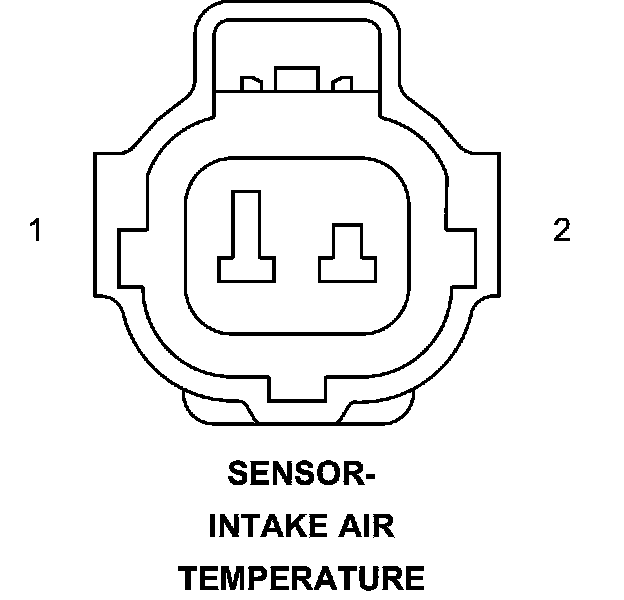

SENSOR-INTAKE AIR TEMPERATURE HEV - (ENGINE) 2 WAY
