Backup Lamp Switch

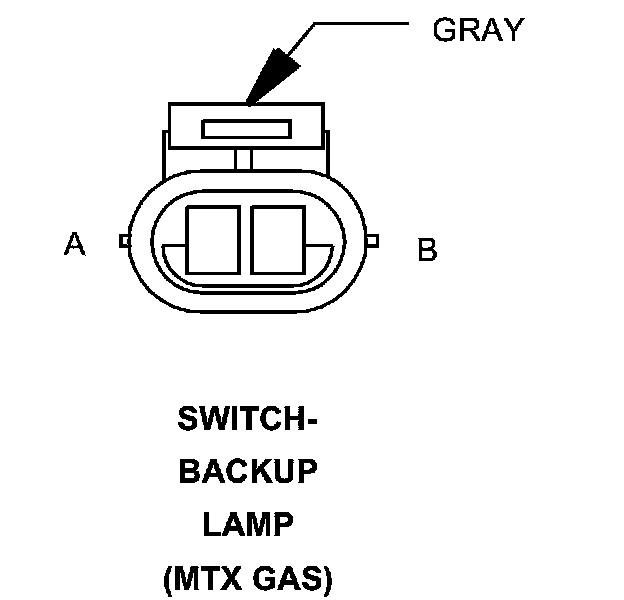

Connector (MTX GAS) - (ENGINE) 2 WAY

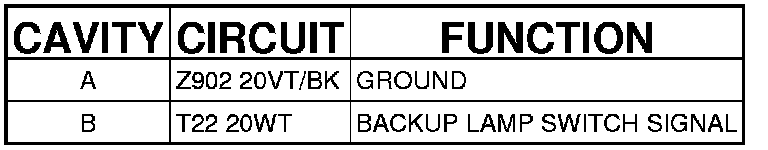

SWITCH-BACKUP LAMP (MTX GAS) - (ENGINE) 2 WAY
