Blower Motor Resistor

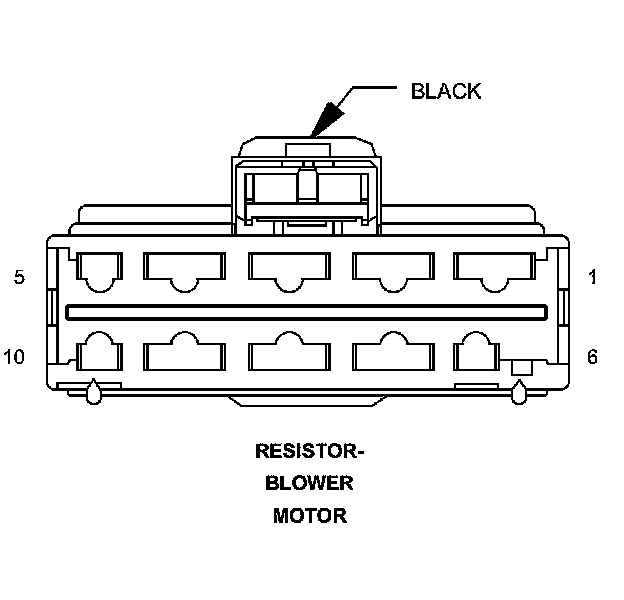

Connector - (HEADLAMP AND DASH) 10 WAY

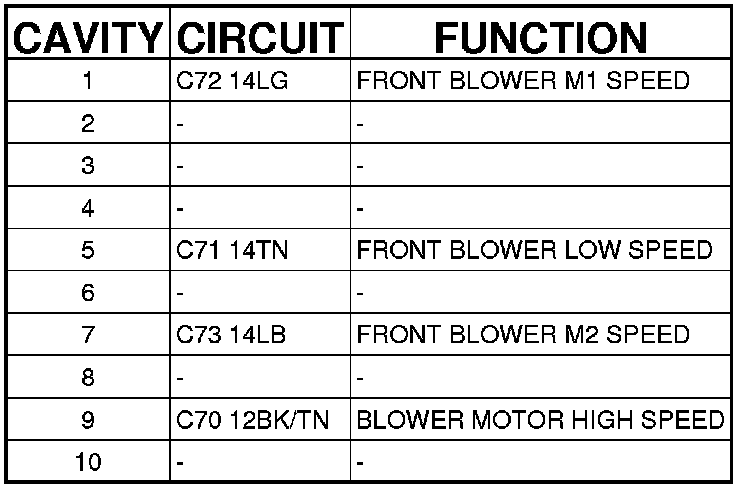

RESISTOR-BLOWER MOTOR - (HEADLAMP AND DASH) 10 WAY
