Brake Light Switch

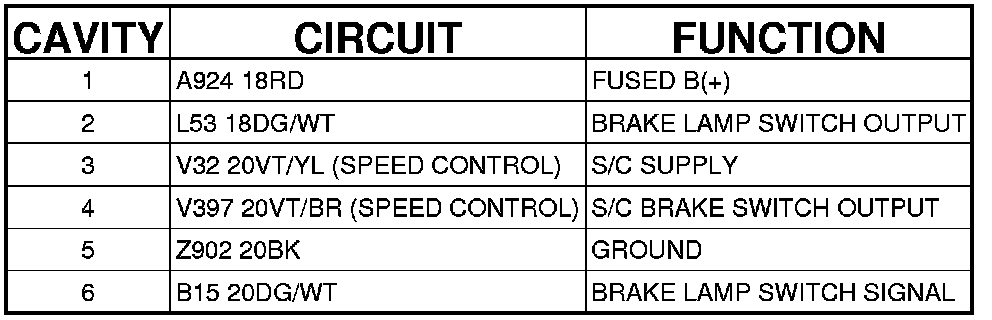

Connector (GAS) - (HEADLAMP AND DASH) 6 WAY

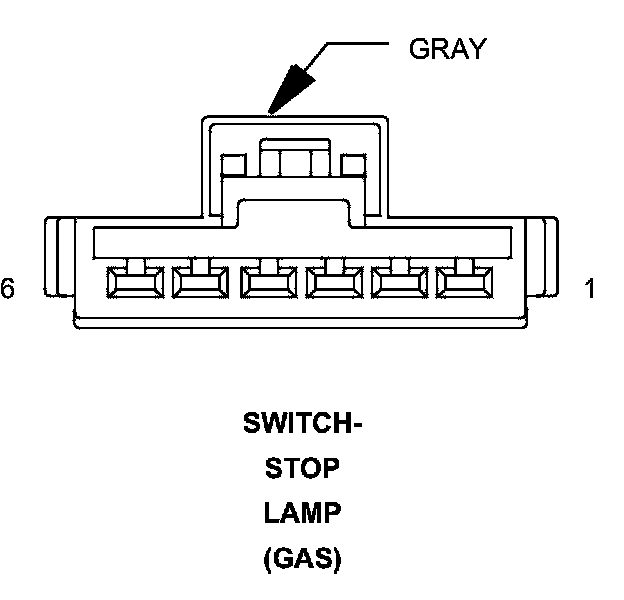

SWITCH-STOP LAMP (GAS) - (HEADLAMP AND DASH) 6 WAY
