High Pressure Sensor / Switch, HVAC

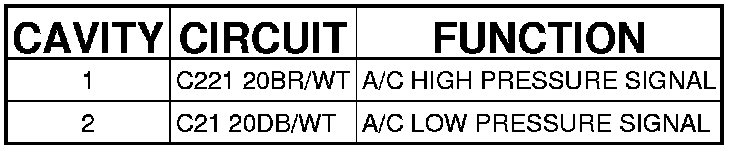

Connector (GAS) - (ENGINE) 2 WAY

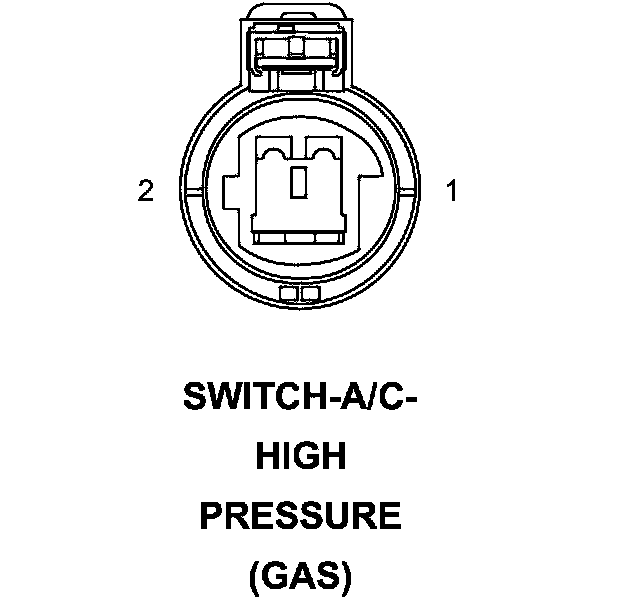

SWITCH-A/C-HIGH PRESSURE (GAS) - (ENGINE) 2 WAY
