Low Pressure Sensor / Switch, HVAC
Low Pressure Sensor / Switch, HVAC

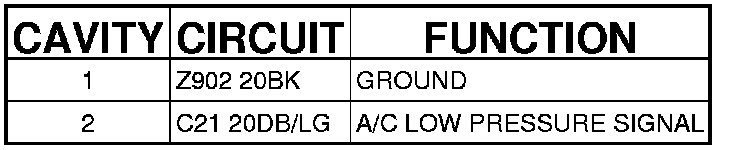

Connector - (HEADLAMP AND DASH) 2 WAY

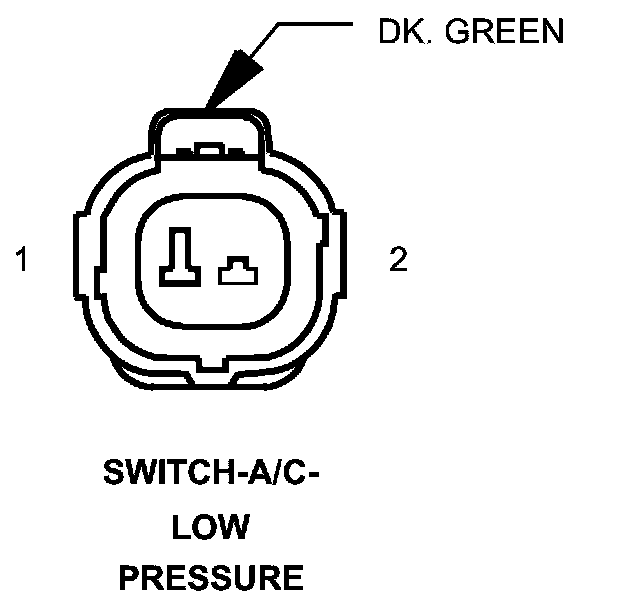

SWITCH-A/C-LOW PRESSURE - (HEADLAMP AND DASH) 2 WAY
