Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)

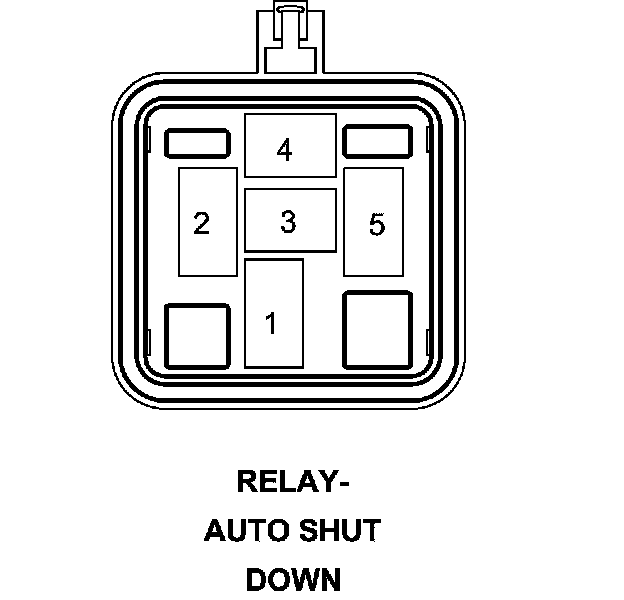

Connector - (HEADLAMP AND DASH)

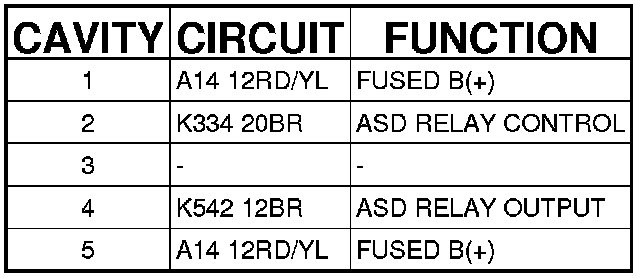

RELAY-AUTO SHUT DOWN - (HEADLAMP AND DASH)
