Chrysler
>>
2009
>>
PT Cruiser L4-2.4L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Front Window Switch (Instrument Panel) 14 Way
Front Window Switch (Instrument Panel) 14 Way

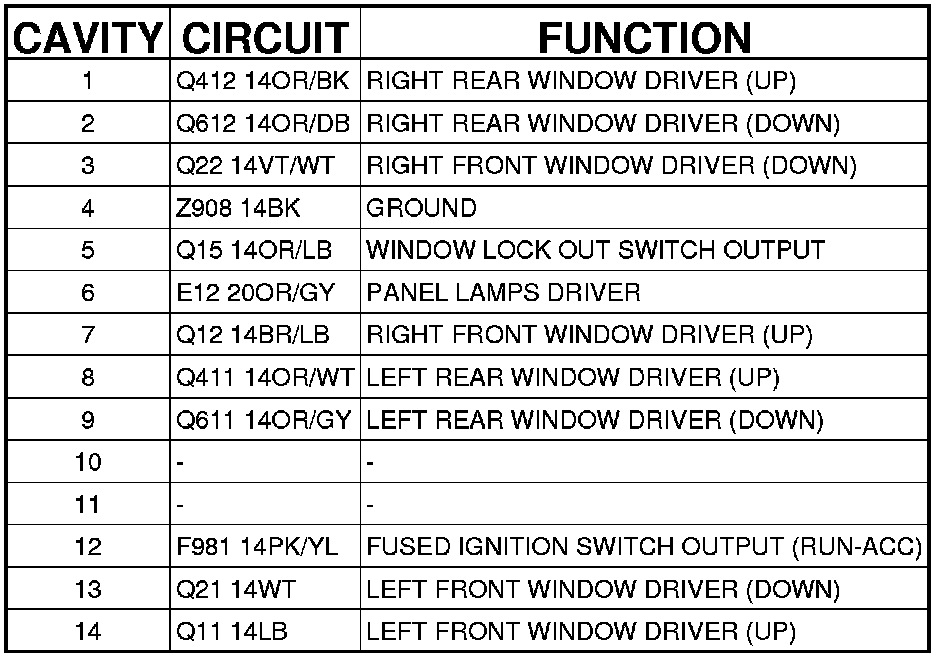

Connector - (INSTRUMENT PANEL) 14 WAY

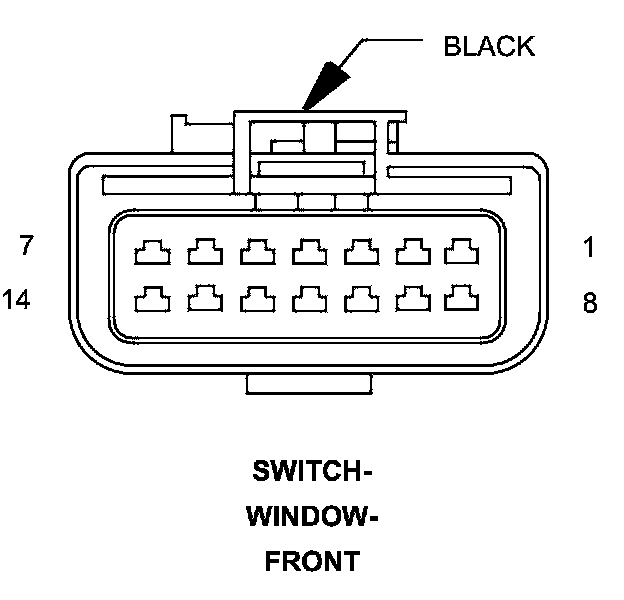

SWITCH-WINDOW-FRONT - (INSTRUMENT PANEL) 14 WAY
