Power Window Switch
>>

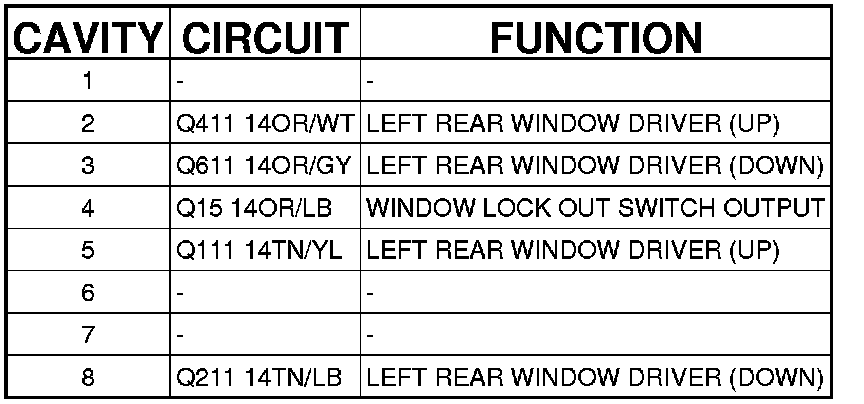

Left Rear Power Window Switch (Body) 8 Way
Left Rear Power Window Switch (Body) 8 Way
Connector - (BODY) 8 WAY
SWITCH-POWER WINDOW-LEFT REAR - (BODY) 8 WAY
