Seat Occupant Classification Module - Air Bag
>>
Occupant Classification Module C1 (Seat) 10 Way
Occupant Classification Module C1 (Seat) 10 Way

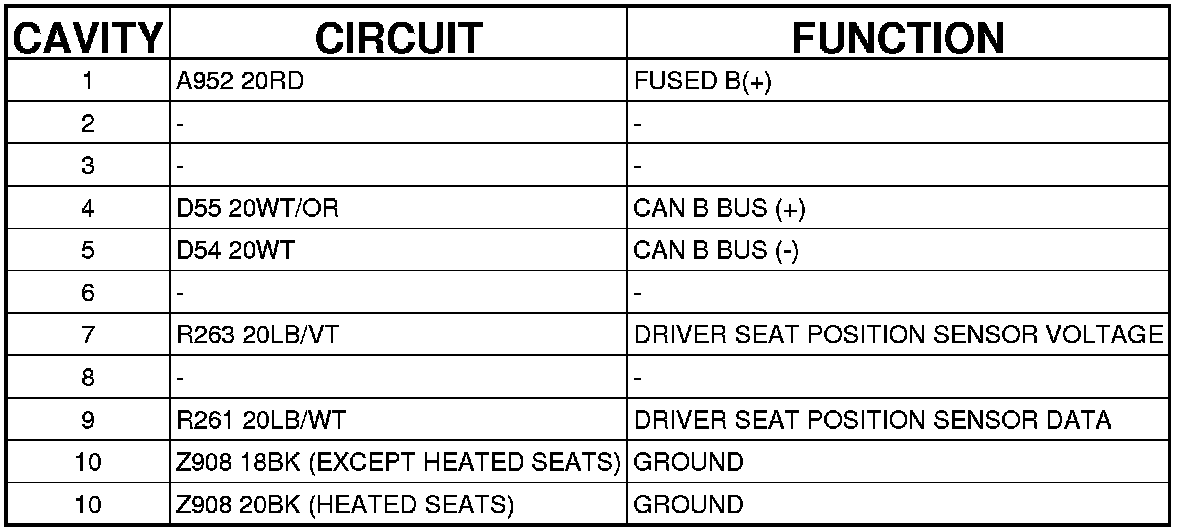

Connector C1 - (SEAT) 10 WAY

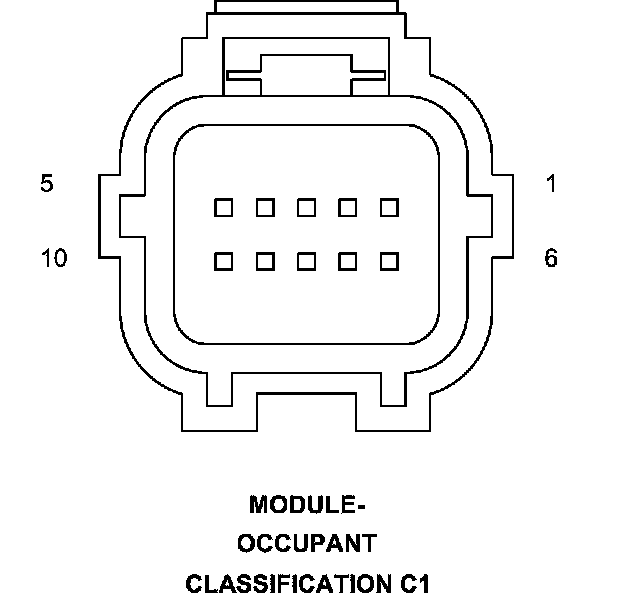

MODULE-OCCUPANT CLASSIFICATION - (SEAT) 10 WAY
