Driver Seat Track Position Sensor (Seat) 2 Way
Driver Seat Track Position Sensor (Seat) 2 Way

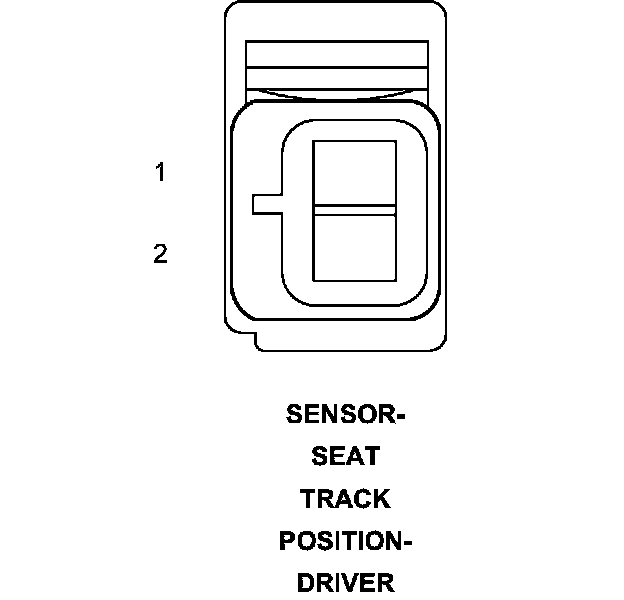

Connector - (SEAT) 2 WAY

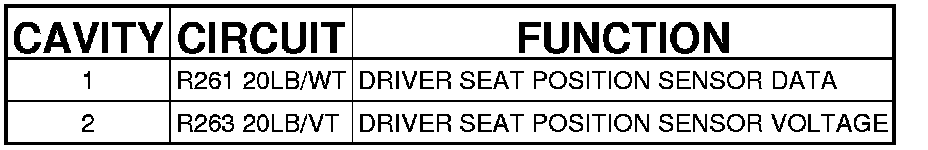

SENSOR-SEAT TRACK POSITION-DRIVER - (SEAT) 2 WAY
