Shift Interlock Solenoid

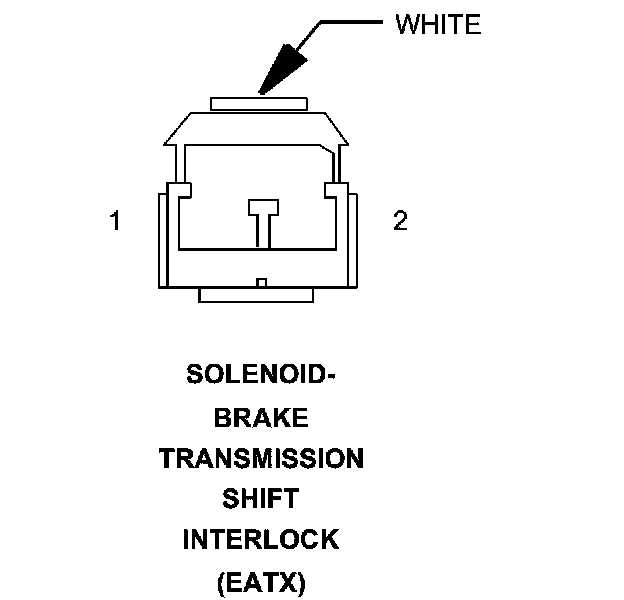

Connector (EATX) - (INSTRUMENT PANEL) 2 WAY

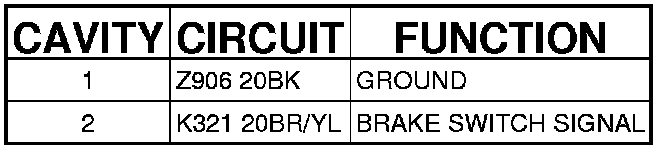

SOLENOID-BRAKE TRANSMISSION SHIFT INTERLOCK (EATX) - (INSTRUMENT PANEL) 2 WAY
