Transmission Position Sensor/Switch, A/T

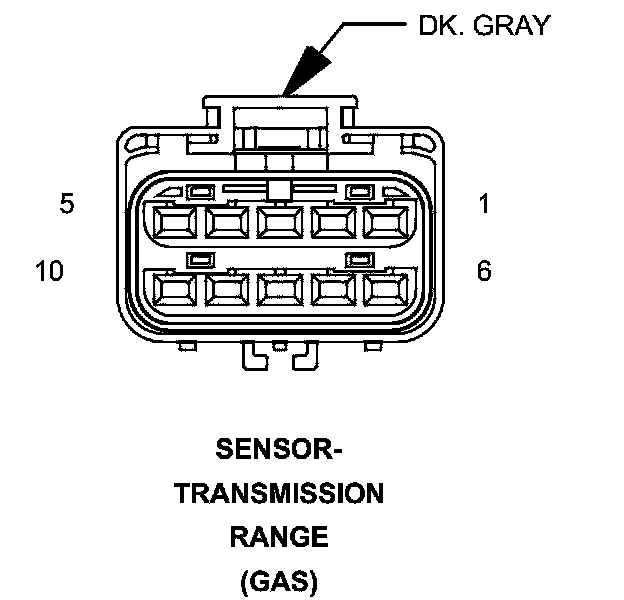

Connector (GAS) - (ENGINE) 10 WAY

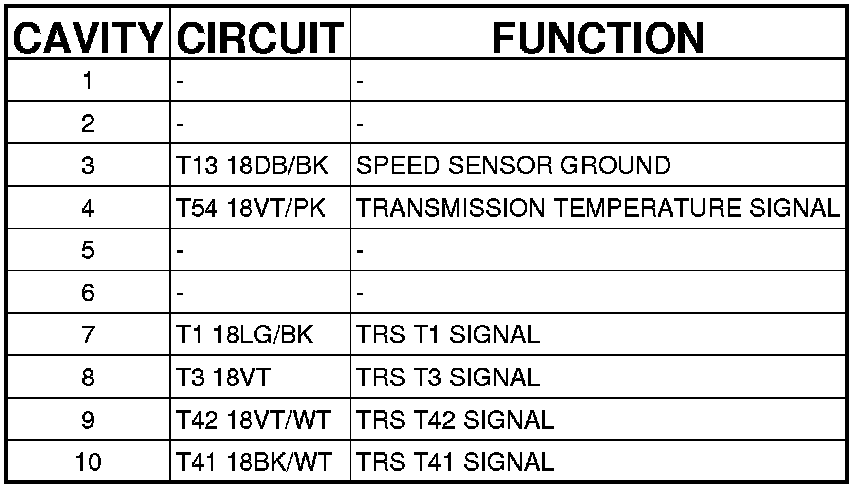

SENSOR-TRANSMISSION RANGE (GAS) - (ENGINE) 10 WAY
