Trunk / Liftgate Switch
Trunk / Liftgate Switch

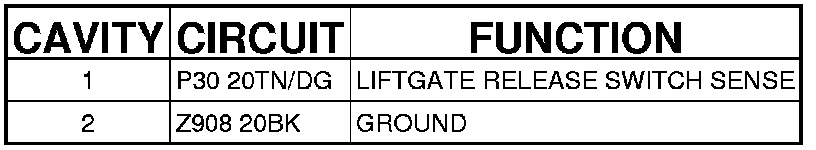

Connector - (LIFTGATE) 2 WAY

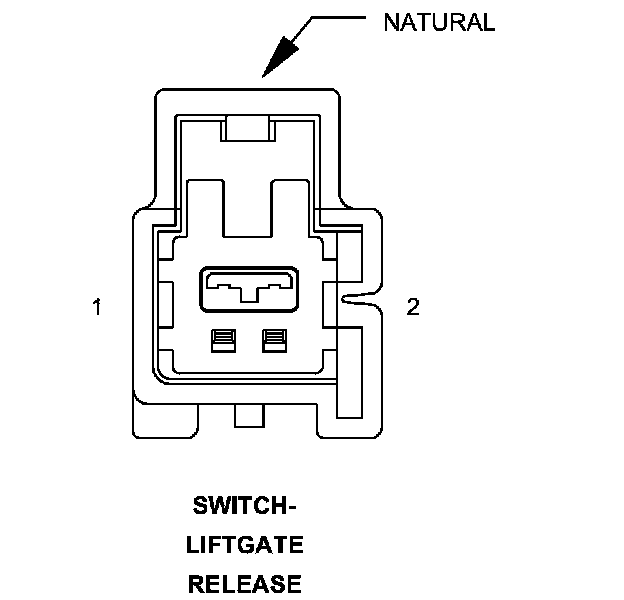

SWITCH-LIFTGATE RELEASE - (LIFTGATE) 2 WAY
