Front Oxygen Sensor (Engine-Except Turbo/Injector-Turbo) 4 Way

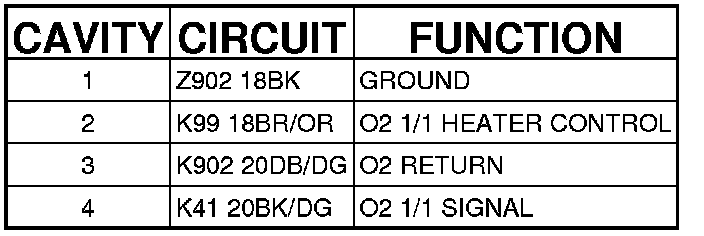

Connector (GAS) - (ENGINE-EXCEPT TURBO/INJECTOR-TURBO) 4 WAY

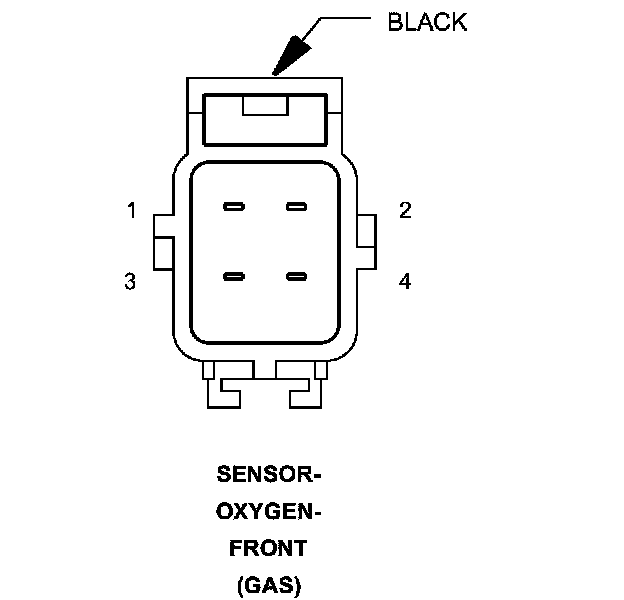

SENSOR-OXYGEN-FRONT (GAS) - (ENGINE-EXCEPT TURBO/INJECTOR-TURBO) 4 WAY
