Power Steering Pressure Switch: Diagrams

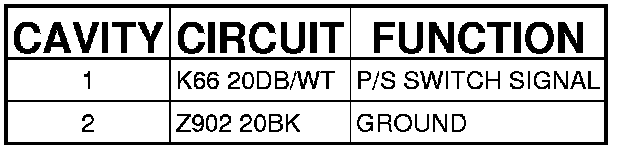

Connector (GAS) - (HEADLAMP AND DASH) 2 WAY

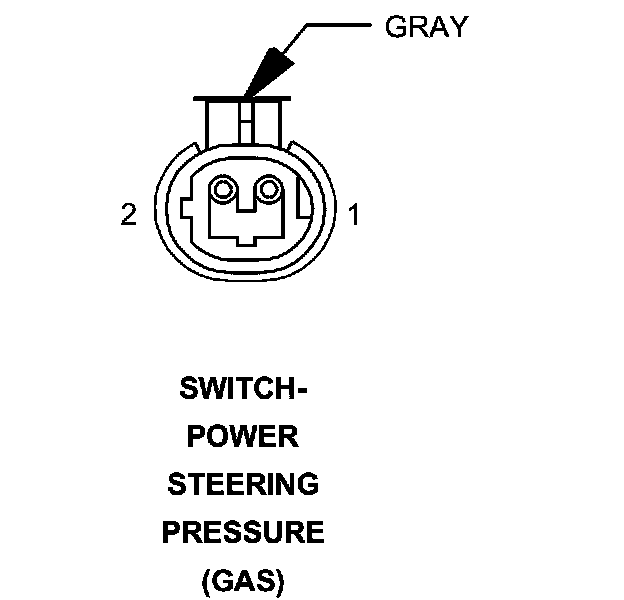

SWITCH-POWER STEERING PRESSURE (GAS) - (HEADLAMP AND DASH) 2 WAY
