Throttle Position Sensor: Diagrams

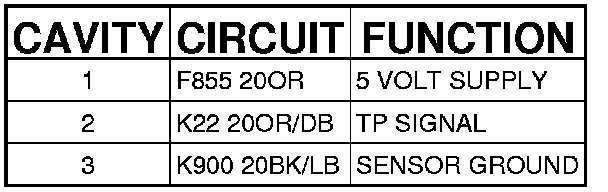

Connector (GAS) - (ENGINE) 3 WAY

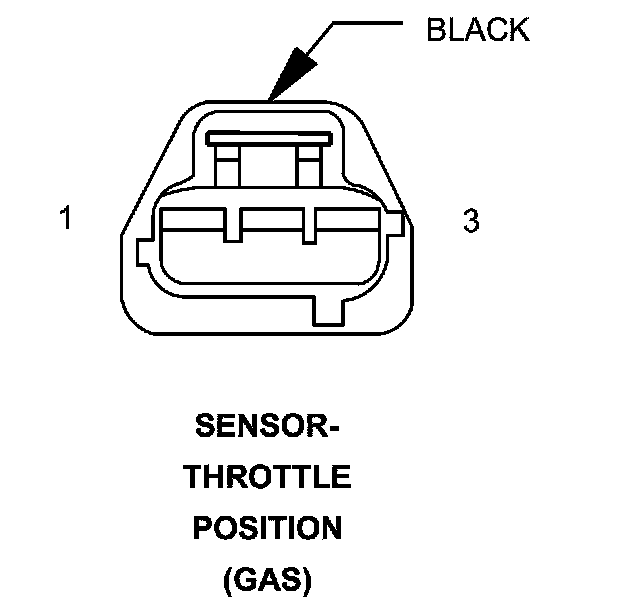

SENSOR-THROTTLE POSITION (GAS) - (ENGINE) 3 WAY
