Installation

INSTALLATION

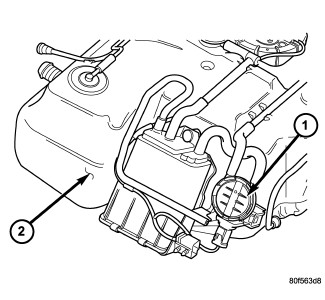

1. Install NVLD valve to NVLD bracket.
2. Install assembly to EVAP canister bracket.
3. Install hoses and electrical connector to NVLD valve.
4. Lower vehicle.
5. Reconnect negative battery cable.
