Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

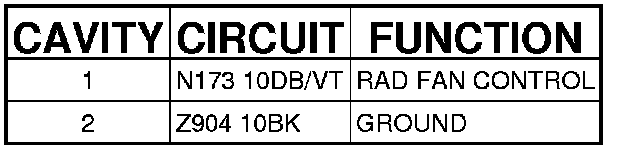

Connector - (FRONT END LIGHTING) 2 WAY
FAN MODULE-RADIATOR COOLING - (FRONT END LIGHTING) 2 WAY
