B168F

B168F-FRONT FOG LAMP SWITCH CIRCUIT STUCK



- When Monitored:
With the Fog Lamps on.

- Set Condition:
When the CCN detects a Fog Lamp Switch Stuck message on the BUS.





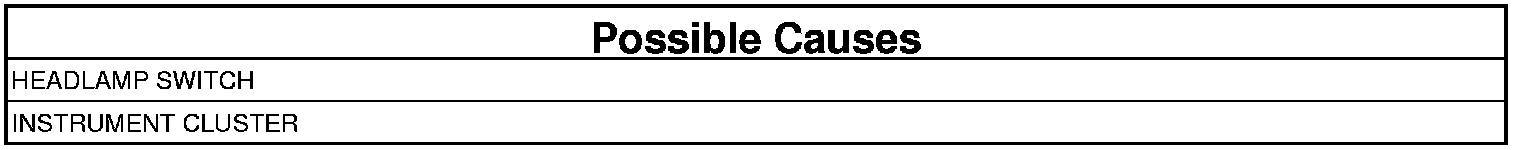

1. TEST FOR INTERMITTENT CONDITION
1. With the scan tool, record and erase DTCs
2. Operate the Fog Lamp Switch several times.
3. Turn the ignition on and wait 30 seconds.
4. With the scan tool, read DTCs.

Does the scan tool display: B168F-FRONT FOG LAMP SWITCH CIRCUIT STUCK?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST. Body Verification Test.

2. HEADLAMP SWITCH




1. Turn the ignition off.
2. Disconnect the Headlamp Switch harness connector.
3. Turn the ignition on.
4. With the scan tool read DTCs.

Does the scan tool display: B168F-FRONT FOG LAMP SWITCH CIRCUIT STUCK?

Yes

- Replace the Instrument Cluster.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Headlamp Switch.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
