B1B0B
B1B0B-PASSENGER AIRBAG SQUIB 1 CIRCUIT SHORTED TOGETHER
Theory of Operation
When powered, the Occupant Restraint Controller (ORC) sends a test current to the squibs to verify the integrity of the squib and the wiring. These circuits are maintained in a "floating" configuration at the module, (connected to neither power nor ground), as protection against inadvertent deployment. Use of the Supplemental Restraints System (SRS) Load Tool Kit 8443A in the tests below substitutes a suspect squib with a known good component. The use of the SRS Load Tool Adapter tool provides a test point, as well as a method for opening the shorting bar connections within the harness connector.
- When Monitored:
The ORC sends out a 40 mA diagnostic current on each squib voltage supply circuit at power up and every 500 ms thereafter while the ignition is in on.
- Set Condition:
This DTC sets when the ORC detects both circuits of the same squib are shorted together for more than 2.5 seconds. This DTC transitions from active to stored, when the module sees a recovery from the shorted together condition for greater than 2.5 seconds.
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.
1. DETERMINE ACTIVE OR STORED DTC
NOTE: Make sure the battery is fully charged.
1. Turn the ignition on.
2. With the scan tool, read the ORC DTCs.
Is the DTC active or stored?
ORC - ACTIVE DTC
- Go To 2
ORC - STORED DTC
- Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. Restraints System Intermittent Condition Test.
2. CHECK FOR SHORTED SQUIB CIRCUITS IN PASSENGER AIRBAG
WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Passenger Airbag Squib harness connectors.
NOTE: Check the connectors - Clean and repair as necessary.
2. Connect the SRS Load Tool Kit 8443A and the SRS Load Tool Jumper 8443-8 to the Passenger Airbag Squib harness connector.
WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTCs.
Does the scan tool display: B1B0B-PASSENGER AIRBAG SQUIB 1 CIRCUIT SHORTED TOGETHER?
Yes
- Go To 3
No
- WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the Passenger Airbag.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
3. CHECK (R42) PASSENGER SQUIB 1 LINE 2 CIRCUIT FOR A SHORT TO (R44) PASSENGER SQUIB 1 LINE 1 CIRCUIT
WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit 8443A and the SRS Load Tool Jumper 8443-8 from the Passenger Airbag Squib harness connector
2. Disconnect the ORC harness connectors.
NOTE: Check the connectors - Clean and repair as necessary.
3. Connect the SRS Load Tool Adapter 8443-28 to the ORC harness connectors.

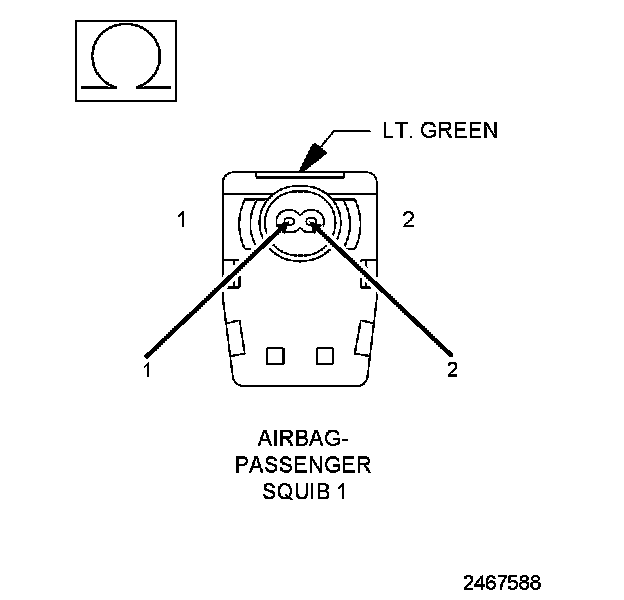

4. Measure the resistance between the (R42) Passenger Squib 1 Line 2 circuit and the (R44) Passenger Squib 1 Line 1 circuit at the Passenger Airbag Squib harness connector.
Is the resistance below 5K Ohms?
Yes
- Repair or replace the (R42) Passenger Squib 1 Line 2 circuit for a short to the (R44) Passenger Squib 1 Line 1 circuit.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
No
- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the ORC.
- Perform RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
