Rear

REMOVAL

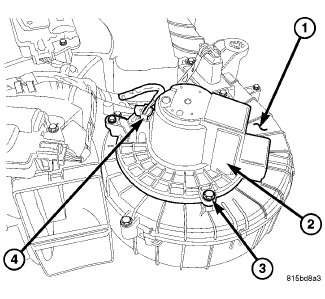

1. Remove the rear heater-A/C housing and place it on a workbench Rear HVAC Housing.
2. Disconnect the rear heater-A/C wire harness connector (4) from the rear blower motor (2).
3. Remove the three screws (3) that secure the rear blower motor to the rear heater-A/C housing and remove the blower motor.
