Intake Manifold

INTAKE MANIFOLD





Intake Manifold Lower Bolts 28 Nm (250 in. lbs.)

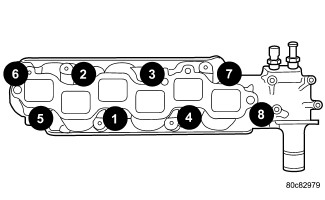

Intake Manifold Upper Bolts
Tighten the bolts gradually starting in the center working outward to 12 Nm (105 in. lbs.)
