40TE Automatic Transaxle






40/41TE - WITH VARIABLE LINE PRESSURE

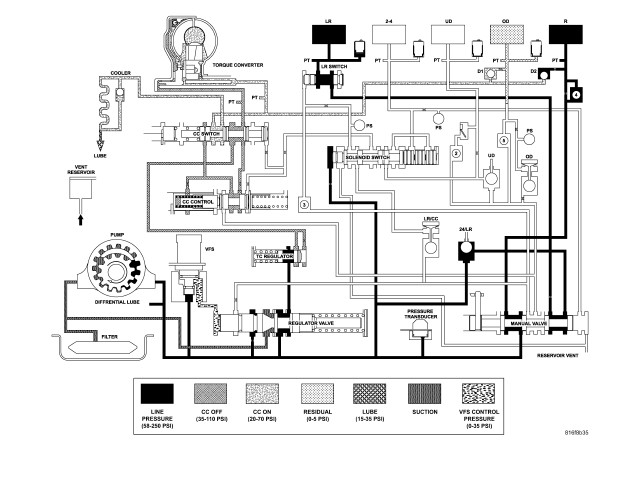

Figure 1 - Park and Neutral

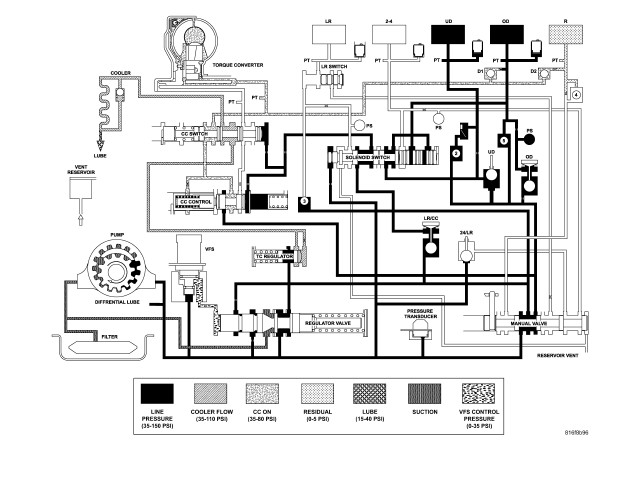

Figure 2 - Reverse

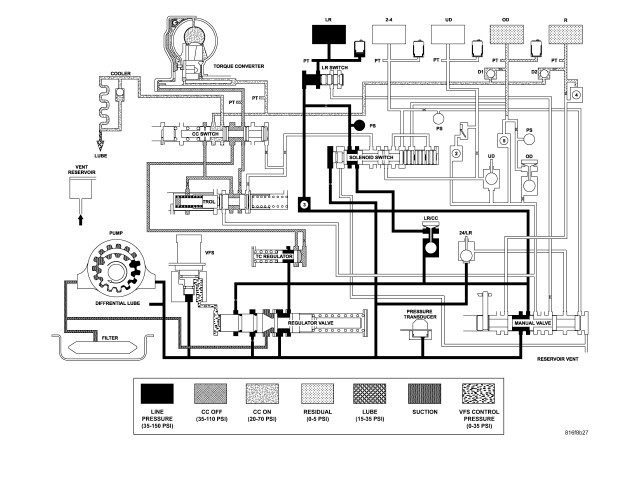

Figure 3 - Drive - First Gear

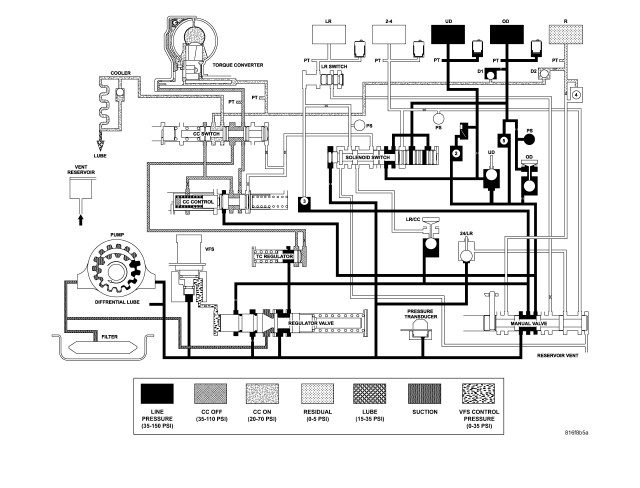

Figure 4 - Drive - Second Gear

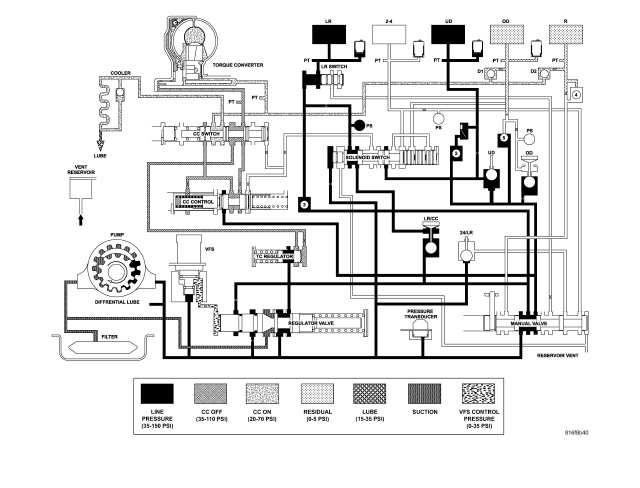

Figure 5 - Drive - Second Gear EMCC

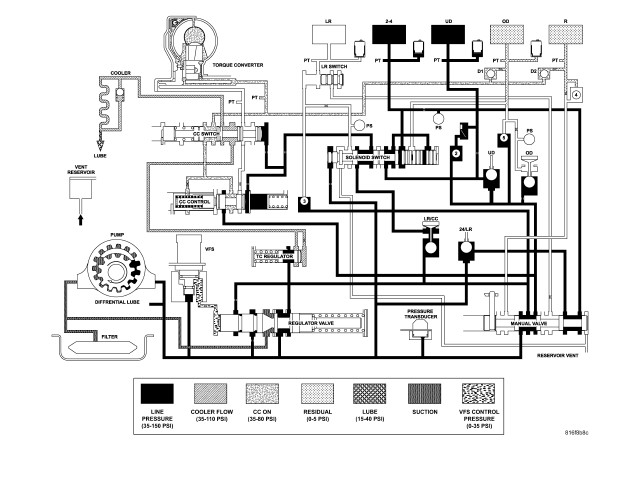

Figure 6 - Drive - Direct Gear

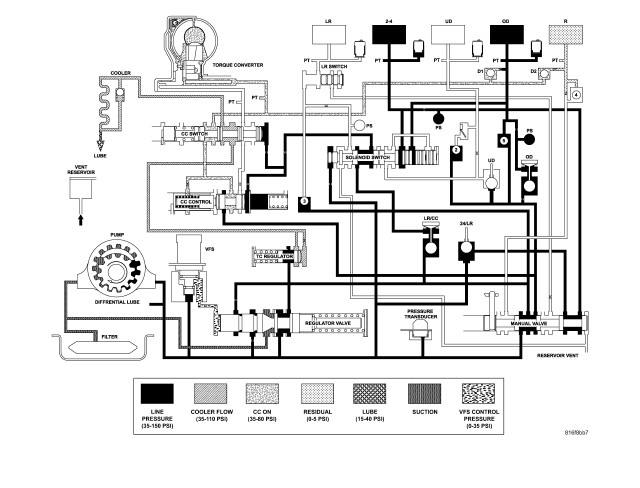

Figure 7 - Drive - Direct Gear EMCC

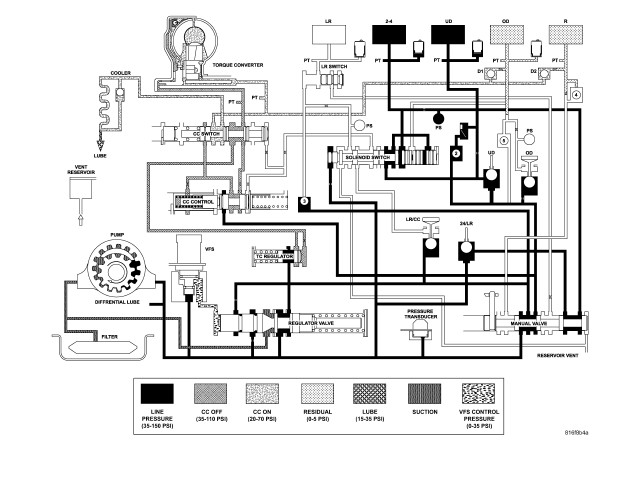

Figure 8 - Drive - Fourth Gear (Overdrive)



Figure 9 - Drive - Fourth Gear (Overdrive) EMCC
