Remote Start Antenna - Removal

REMOVAL






WARNING: Wait two minutes for the system reserve capacitor to discharge before servicing any airbag components. Failure to do this may result in serious or fatal injury.

The remote start antenna is located driver's side front of dash.

1. Disconnect and isolate the battery negative cable.
2. Remove radio. Refer to Radio - Removal.
3. Remove instrument cluster. Refer to Instrument Cluster - Removal.
4. Remove the instrument panel top pad. Refer to . Instrument Panel Pad - Removal

NOTE: During removal of the remote start antenna note the routing location of the coaxial cable.

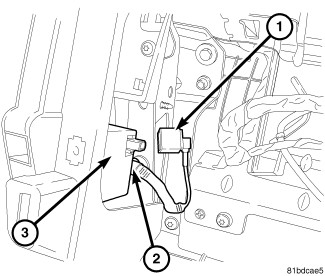

5. Disconnect remote start antenna coaxial cable connector (1) from skreem module (3).
6. Remove the mounting clip (2).





7. Remove the mounting clip at the steering column reinforcement bracket.
8. Remove screws (1) and remove remote start antenna (2) from instrument panel assembly.
