Sunroof Module (SUNR)






B21A1-ECU RESET/RECOVERY OCCURRED

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
At all times.

- Set Condition:

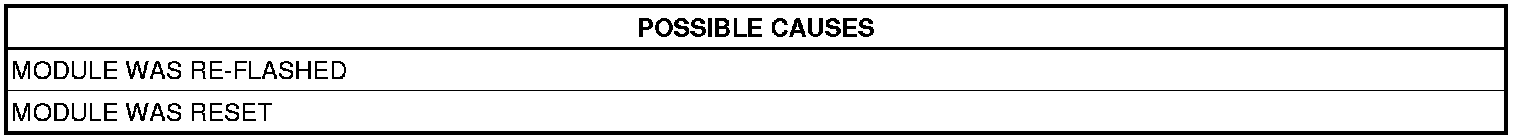

Whenever the module detects a power on reset or a reflash, this code will set. This code is for information only. No repair is necessary.






This DTC is for information only. At some time the module was re-flashed or was reset during a power on operation. No repair is necessary.
