Childproof Rear Door Lock

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the door seal trim.
3. Remove the screw and the guide rail.

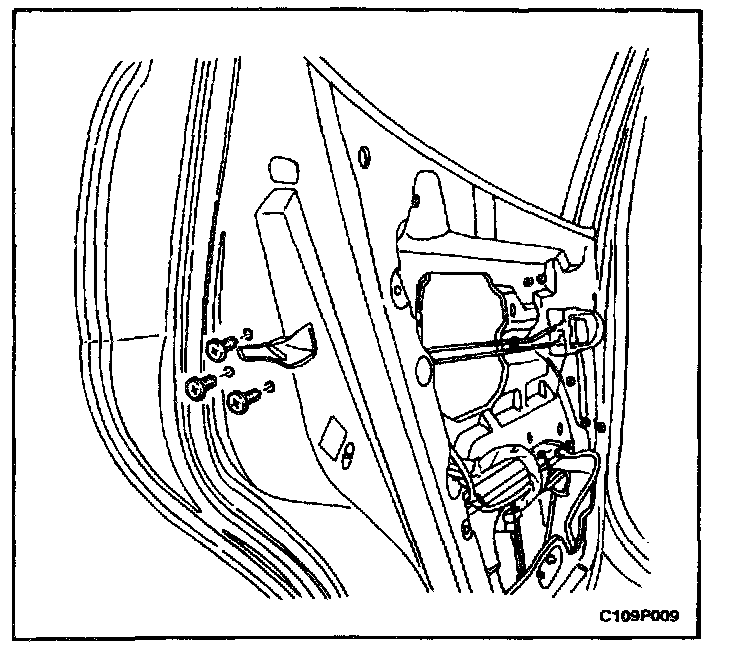

4. Remove the door lock screws.
5. Disconnect the lock rods.
6. Remove the door lock.
7. Disconnect the electrical connector.

Installation Procedure




1. Connect the electrical connector.

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

2. Install the rear door lock with the screws.

Tighten
Tighten the rear door lock screws to 8 Nm (71 lb.in).




3. Install the lock rods.
4. Install the guide rail with the bolts and the screw.

Tighten
Tighten the rear door guide rail screw to 4 Nm (35 lb.in).
Tighten the rear door guide rail bolts to 7 Nm (62 lb.in).

5. Install the door seal trim.
6. Connect the negative battery cable.
