Parking Brake Handle

Removal Procedure
1. Remove the parking brake/gearshift console hood.

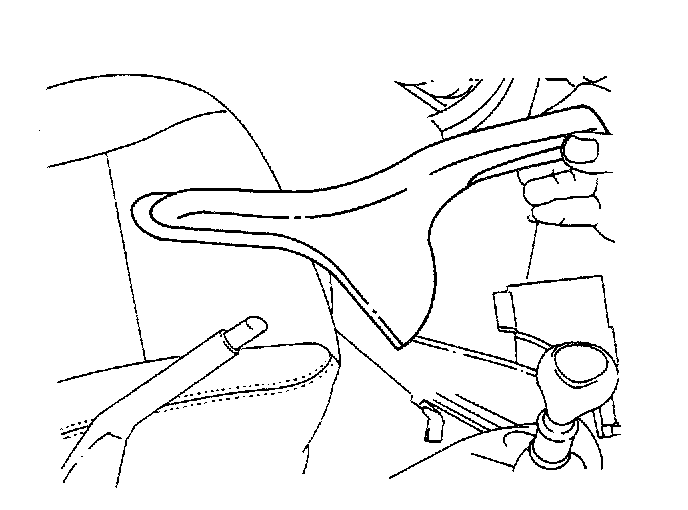

2. Slip the parking brake handle off of the parking brake lever.

Installation Procedure





1. Push the parking brake handle as far as it will go on the parking brake lever.
2. Install the parking brake/gearshift console hood.
