Home >> Daewoo >> 1999 >> Leganza CDX L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Manual A/C

Manual A/C

Manual A/C Block Diagram:

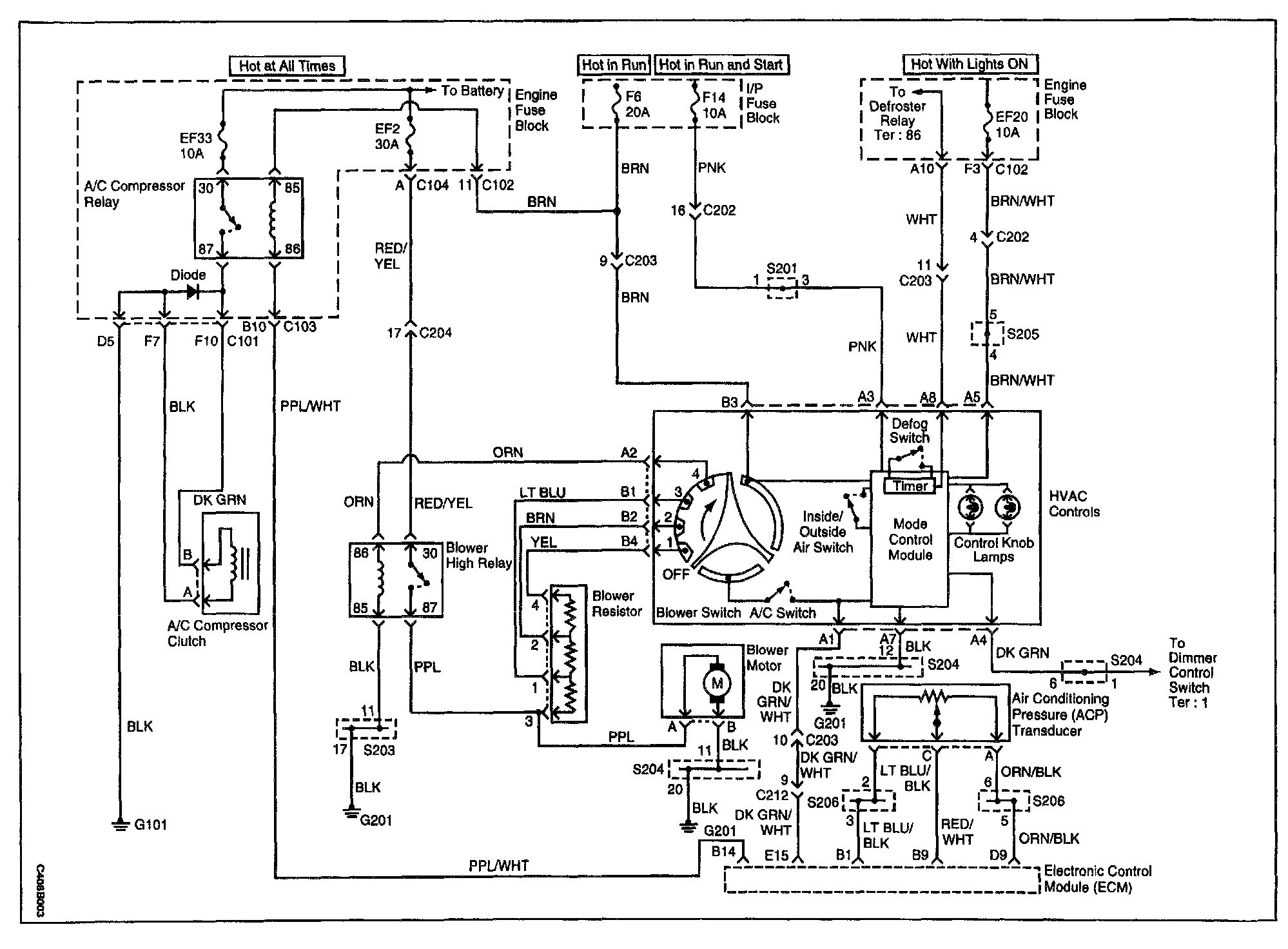

Air Conditioner Control Switch & Blower Motor Circuit:



Air Conditioner Compressor Circuit:
