Control Module/Receiver

Removal Procedure
1. Disconnect the negative battery cable.
2. Remove floor console left side forward trim panel.

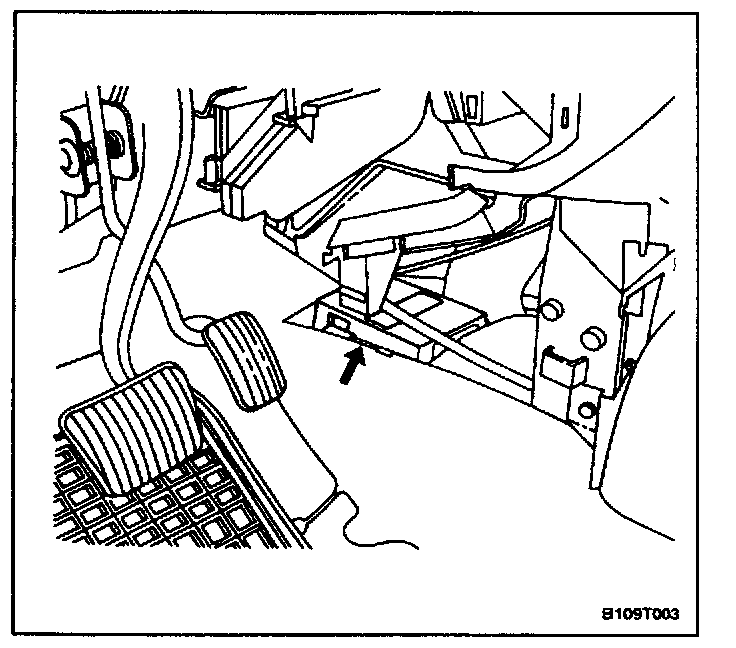

3. Disconnect the control module/receiver electrical connector.
4. Slide the control module/receiver toward the front of the vehicle and remove it.




Installation Procedure
1. Install the control module/receiver by sliding it onto its bracket.

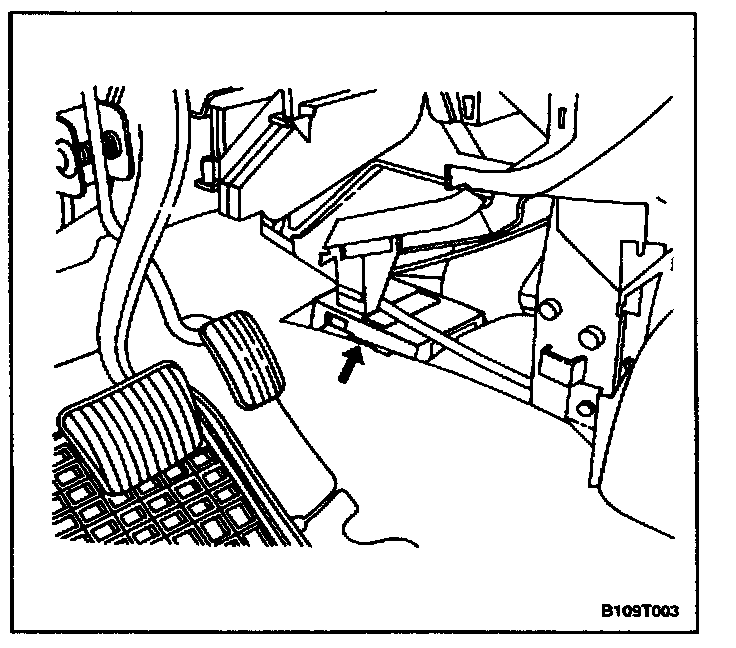

2. Connect the control module/receiver electrical connector.
3. Install the floor console left side forward trim panel.
4. Connect the negative battery cable.
