Temperature Gauge: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.

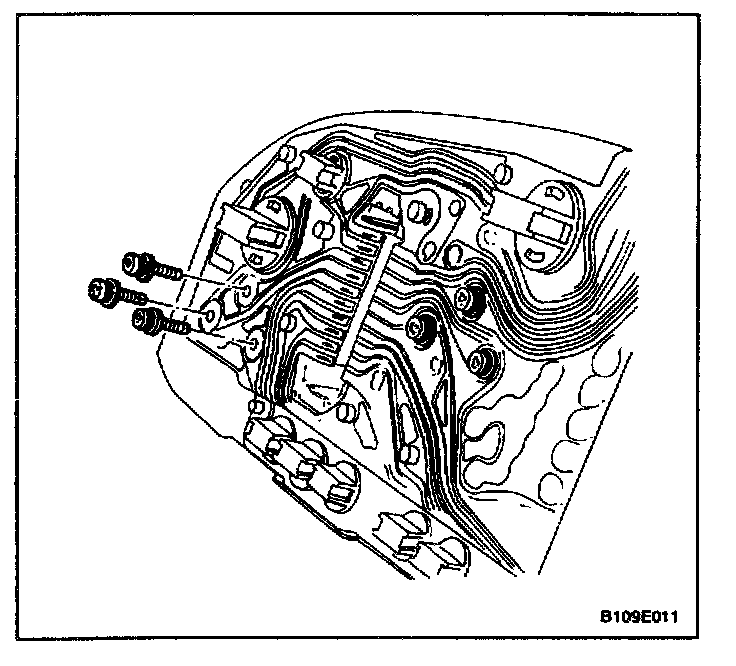

2. Remove the instrument cluster.

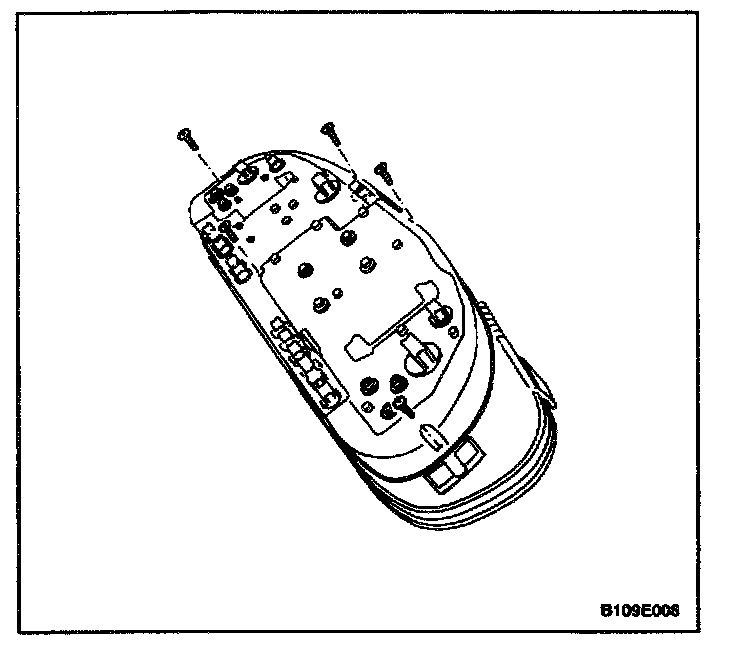

3. Remove the instrument cluster lens screws and the instrument cluster lens.




4. Remove the temperature gauge screws and the temperature gauge from the cluster assembly.

Installation Procedure




1. Install the temperature gauge to the cluster assembly with the temperature gauge screws.

Tighten
Tighten the temperature gauge screws to 2.5 Nm (22 lb.in).




2. Install the instrument cluster lens with the instrument cluster lens screws.
3. Install the instrument cluster.
4. Connect the negative battery cable.
