Symptom Related Diagnostic Procedures

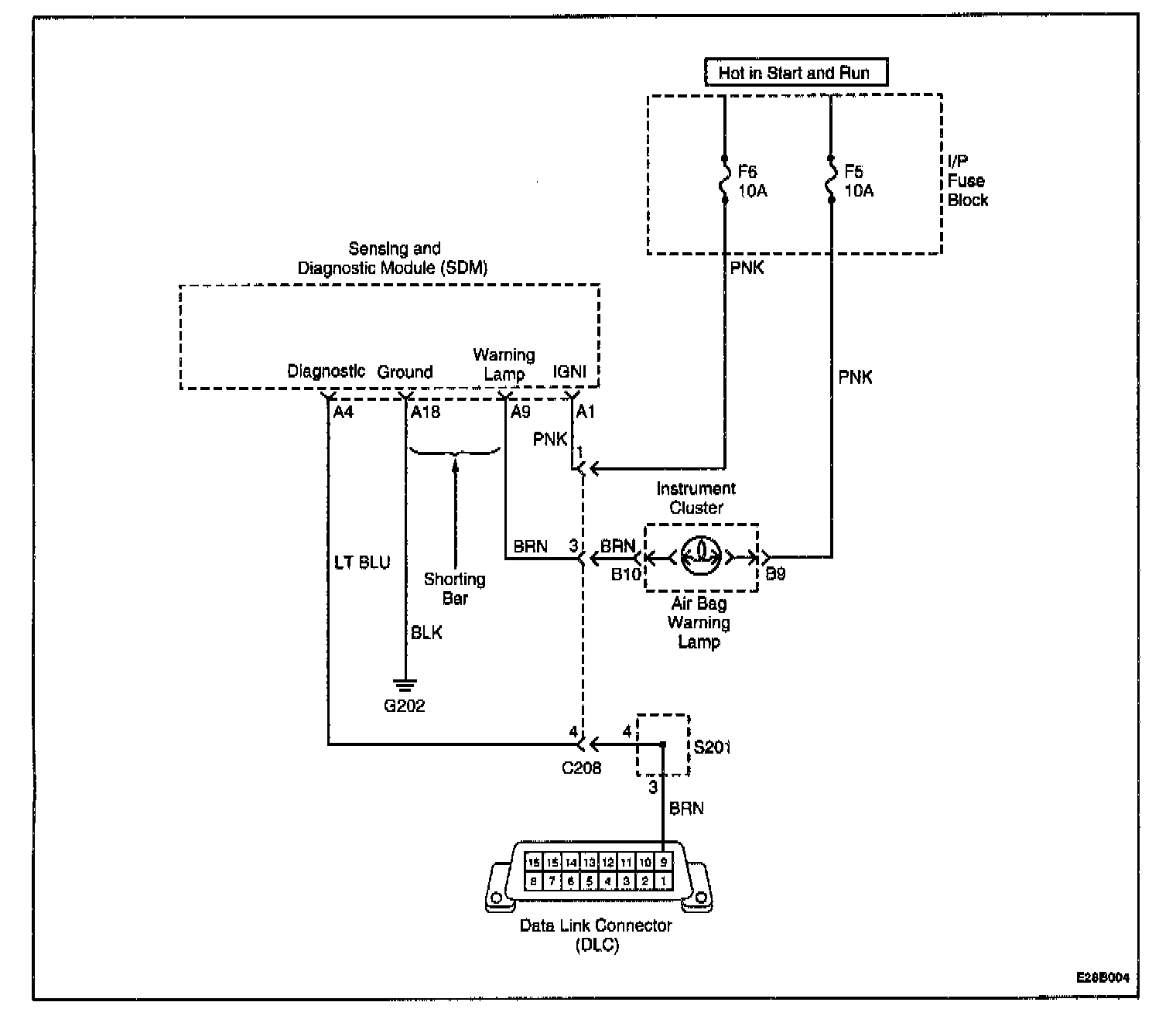

The AIRBAG indicator will stay on if the sensing and diagnostic module (SDM) connector is not securely attached to the SDM. There is a shorting bar in the SDM connector which completes the circuit between the indicator lamp circuit and ground. The shorting bar is disengaged when the connector is properly attached.

When the ignition switch is first turned to ON, Ignition 1 voltage is applied to the instrument fuse for the indicator lamp and also to the AIRBAG fuse for the SDM input terminal A1. If Ignition 1 is outside the range of 9 to 16 volts, the AIRBAG indicator will come on and stay on with no DTCs set.

A short to ground between the SDM and the indicator lamp could also cause the AIRBAG indicator to stay on.

Test Description
The number(s) below refer to step(s) on the diagnostic table.

8. See the caution below.

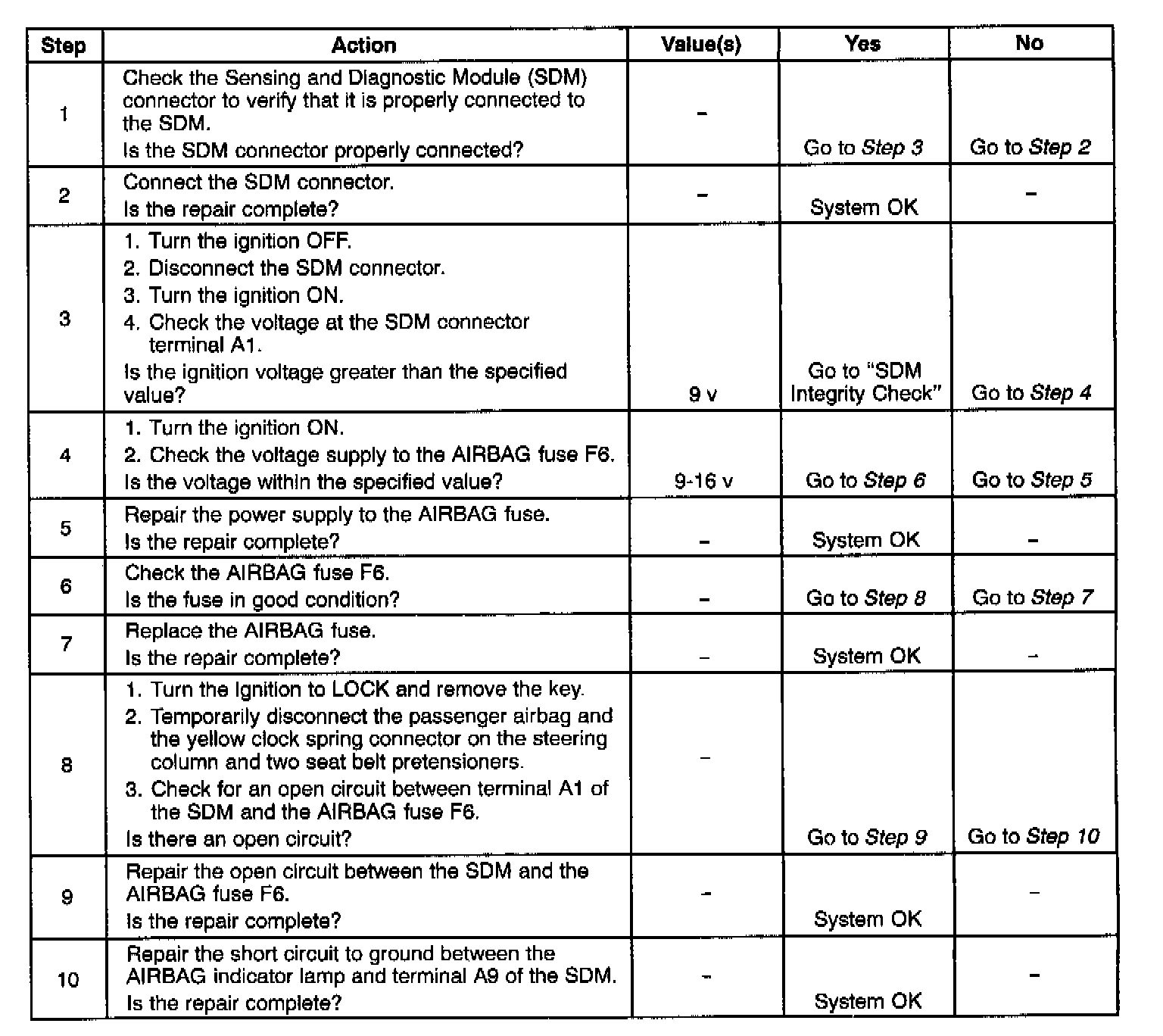

Steps 1 - 10:

AIRBAG Warning Lamp Stays on with Ignition Switch ON

CAUTION: The SDM can maintain sufficient voltage to bags are not disconnected, service cannot begin deploy the airbags for 10 minutes after the ignition until 10 minutes have passed after disconnecting is OFF and the fuse has been removed. If the air- power to the SDM.
