Spacer Plate and Gaskets Install

SPACER PLATE AND GASKETS INSTALL

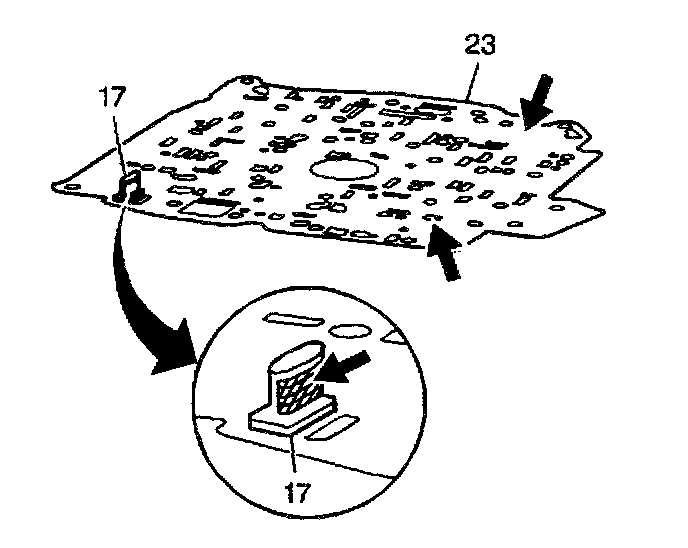

1. Inspect the spacer plate and spacer plate filter for damage.
2. If damaged, replace the spacer plate and spacer plate filter.





3. Install a new spacer plate to channel plate gasket (24) onto the channel plate.
4. Install the spacer plate (23) on top of the gasket and channel plate.
5. Install the spacer plate support (21) and the two bolts (20) onto the spacer plate. Hand start and then tighten the bolts to 14 Nm (10.5 ft. lbs.).
