Wiring Harness Assembly Connect

WIRING HARNESS ASSEMBLY CONNECT

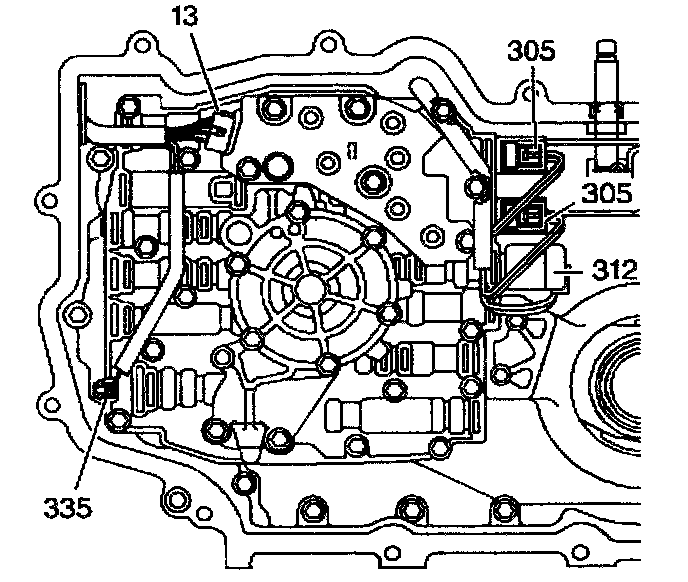

Connect the wiring harness assembly to the following components:
- The Transmission Fluid Pressure (TFP) switch (13)
- The Pressure Control Solenoid (PCS) (312) (red connector)

Important: The 1-2 Shift Solenoid (1-2 SS) wires are red and light green. The 2-3 Shift Solenoid (2-3 SS) wires are red and yellow.

- The 1-2 SS (305) (white connector)
- The 2-3 SS (305) (white connectors)
- The Torque Converter Clutch (TCC) solenoid (335)
